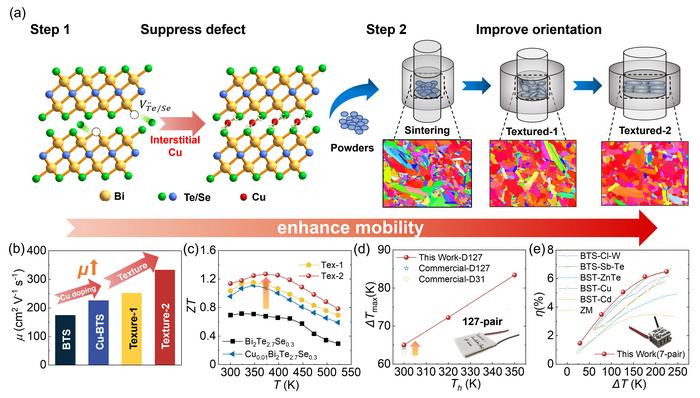

image: (a) The schematic diagram shows the optimization route for the TE performance in this work. The interstitial Cu was introduced into the van der Waals layer of Bi2Te2.7Se0.3, effectively suppressing the intrinsic defects in the material. Further, a two-step hot deformation process was employed to prepare the highly textured Cu0.01Bi2Te2.7Se0.3. (b) The room temperature carrier mobility data indicating the interstitial Cu and texturation process is effective in improving the mobility of Cu0.01Bi2Te2.7Se0.3. (c) Temperature dependent ZT of pristine Bi2Te2.7Se0.3 and textured Cu0.01Bi2Te2.7Se0.3. (d) Cooling performance of a 127-pair TEC module based on textured Cu0.01Bi2Te2.7Se0.3 and commercial p-type (Bi,Sb)₂Te₃ at different temperatures. (D127 represents 127-pair device, and D31 represents 31-pair device). (e) A comparison of device energy conversion efficiency for 7-pair TEG module and other reported Bi2Te3-based TE modules.
Credit: ©Science China Press
Due to the capacity to directly and reversibly convert heat into electricity, thermoelectric (TE) material has potential applications in solid-state heat pumping and exhaust heat recuperation, thus attracting the worldwide attention. Bi2Te3 stands out for its excellent thermoelectric properties and has been used in commercial thermoelectric devices. However, the development of Bi2Te3-based thermoelectric devices is seriously hindered by the weak mechanical properties and low TE properties of n-type Bi2(Te, Se)3. Therefore, it is important to develop a high-performance n-type Bi2Te3 polycrystalline material.
To address this issue, in this study, extra Cu is introduced into the classical n-type Bi2Te2.7Se0.3 to optimize its local defect state, and a two-step hot deformation process was employed to construct the high textured polycrystalline Bi2Te2.7Se0.3 material. This research reveals that the extra Cu is able to enter the van der Waals gaps between the Te(1)-Te(1) layers in Bi2Te2.7Se0.3 matrix, suppressing the formation of the anionic vacancies. This reduction in defect density contributes to lattice plainification in Cu0.01Bi2Te2.7Se0.3, improving the carrier mobility of Bi2Te2.7Se0.3 from 174 cm2 V–1 s–1 to 226 cm2 V–1 s–1 with the 1% additional Cu, resulting in a maximum ZT of 1.10 at 348 K. Subsequently, the SPS-sintered Cu0.01Bi2Te2.7Se0.3 bulk material underwent a two-step hot deformation process. Since the interstitial Cu can stabilize the lattice and effectively suppress the donor-like effect. The carrier concentration of hot deformation sample remains almost unchanged, while its grain orientation and grain size have significantly increased, which dramatically boosts the carrier mobility, from the initial 174 cm2 V–1 s–1 to 333 cm2 V–1 s–1, representing a 91% increase after the hot deformation process. This significant improvement in electronic properties contributes to a substantial enhancement in ZT for hot deformation sample. The ZTmax of the textured Cu0.01Bi2Te2.7Se0.3 reaches 1.27 at 373 K, and its average ZT value is 1.22 in the range of 300-425 K, nearly twice as much as the initial Bi2Te2.7Se0.3. Furthermore, a 127-pair thermoelectric cooling device (TEC) was fabricated by using the textured Cu0.01Bi2Te2.7Se0.3 sample coupled with commercial p-type BST. The TEC module achieved cooling temperature differentials of 65 K and 83.4 K at hot-end temperatures (Th) of 300 K and 350 K, respectively, which is superior to the commercial Bi2Te3-based TEC modules. And a 7-pair thermoelectric generator module (TEG) was constructed by using the same materials. The TEG module demonstrated a significantly high conversion efficiency of 6.5% at a temperature different of 225 K, which is comparable to other state-of-the-art Bi2Te3-based TEG modules.
Yichen Li, Shulin Bai, Yi Wen, Zhe Zhao, Lei Wang, Shibo Liu, Junqing Zheng, Siqi Wang, Shan Liu, Dezheng Gao, Dongrui Liu, Yingcai Zhu, Qian Cao, Xiang Gao, Hongyao Xie, Li-Dong Zhao. Realizing high-efficiency thermoelectric module by suppressing donor-like effect and improving preferred orientation in n-type Bi2(Te, Se)3. Science Bulletin 2024;69(11): doi: 10.1016/j.scib.2024.04.034
Journal
Science Bulletin
