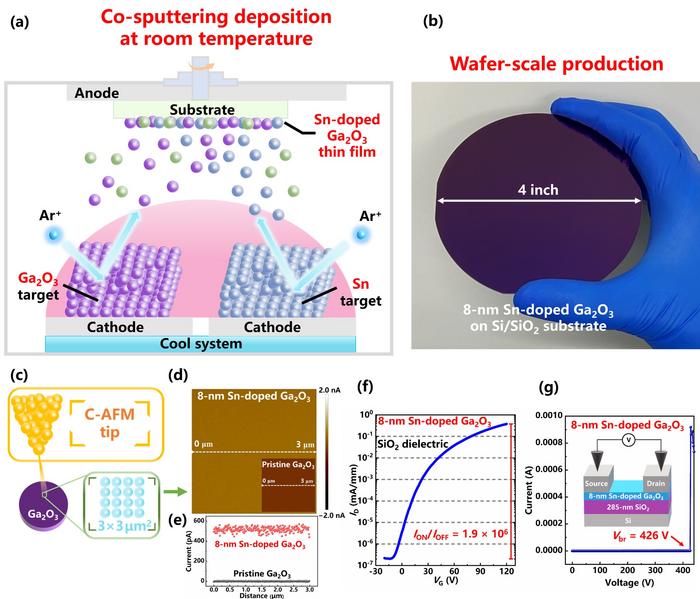

image: (a) Schematic diagram of Sn-doped Ga2O3 film preparation via co-sputtering at room temperature. (b) Photograph of deposited Sn-doped Ga2O3 films on a 4-inch Si/SiO2 substrate. (c) Schematic diagram of the conductive atomic force microscopy (C-AFM) measurement setup for ultrathin Sn-doped Ga2O3 films on Si-based wafers. (d) Surface current distribution images (3 μm × 3 μm) via C-AFM for Sn-doped Ga2O3 and pristine Ga2O3 films measured at 3 V. (e) Surface current values of the films along the white dashed lines in (d). (f) Transfer curve of the 8-nm Sn-doped Ga2O3 FET with SiO2 gate dielectric under a drain voltage of 120 V. (g) Breakdown characteristics of the FET shown in panel (f).
Credit: ©Science China Press

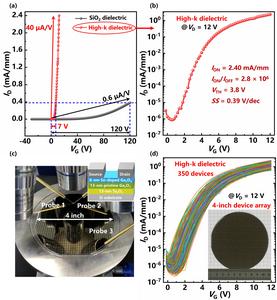

Herein, wafer-scale 8-nm films of Sn-doped gallium oxide (Ga2O3) were fabricated via physical vapor deposition at room temperature. Using these films, 8-nm Sn-doped Ga2O3 field-effect transistors (FETs) featuring SiO2 gate dielectrics were fabricated. These FETs exhibited a high on-state current of 3.8 × 10−1 mA/mm and a high on/off ratio of 1.9 × 106. Notably, they also demonstrated a high breakdown voltage of over 400 V, showcasing their potential for power nanodevices. Even after exposure to air for a year, these FETs maintained their normal electrical characteristics, withstanding a ± 100 V gate-bias stress for 1 hour while retaining a breakdown voltage of over 400 V, underscoring their strong endurance capability. Moreover, their performance was enhanced by replacing the traditional SiO2 gate dielectric with a high-k bilayer comprising Ta2O5 and pristine Ga2O3. This modification reduced subthreshold swing and threshold voltage, enabling high-speed operation and low power consumption. Moreover, a 4-inch 8-nm Sn-doped Ga2O3 FET array was successfully fabricated on a 4-inch silicon substrate, employing the high-k Ta2O5/pristine Ga2O3 gate dielectric. Averaged 350 devices in the 4-inch array, a low driving voltage with a small threshold voltage of 4.1 V is achieved to drive a high on-state current of 1.3 mA/mm. This study provides a promising, efficient, and economical method for producing wafer-scale ultrawide-bandgap semiconductor Ga2O3 device array and enabling their heterogeneous integration with silicon, paving the way for future Si-compatible power nanodevices.
See the article:
https://doi.org/10.1016/j.scib.2024.04.059
