Extremely quiet fans can improve our health
image: Illustration view more
Credit: Chalmers University of Technology / Yen Strandqvist / Martin Ottersten
We spend more of our time indoors than ever. But the noise levels we are exposed to at home, in workplaces and schools have been shown to increase the risk of high blood pressure, mental illness and hearing damage – and may even have a detrimental effect on children's cognitive development. But a unique new study from Chalmers University of Technology, Sweden, published last summer, identified and eliminated the harmful noise that occurs in ventilation system fans – something that could significantly improve our physical and mental health.
Today, we spend as much as 87% of our lives indoors, according to an American study. The quality of indoor environments has therefore become an increasingly important factor for health and well-being. Temperature, carbon dioxide levels and humidity are just some of the factors known to influence our indoor environments, but lately, studies have also shown how indoor noise can have a significant negative impact.

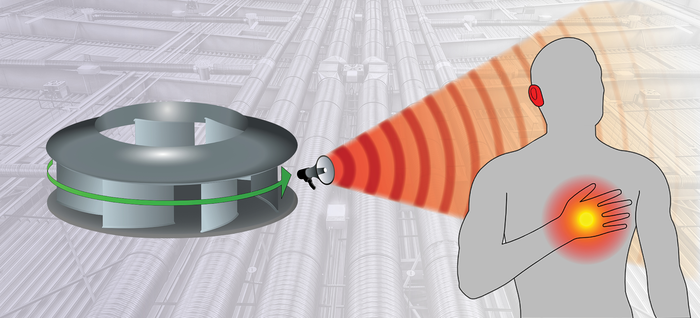

One contributing factor to the constant noise in indoor environments is the fans used in ventilation systems in homes, workplaces, and schools. The core of the problem – and what irritates the human ear – occurs when the fan blades rotate, generating a sound with a consistent and predictable frequency, known as a ‘tonal’ noise. Identifying exactly how this sound occurs, and how to remove it, has been a long-standing quest that researchers and fan manufacturers have not been able to find an answer to.
“The source of the tonal sound has never before been identified on this type of fan. When you can reduce this tone, the fans become extremely quiet and, in that respect, unique. This is the first time someone has succeeded in both identifying and eliminating the source of the noise,” says Martin Ottersten, industrial PhD student in Fluid Dynamics at Chalmers University of Technology and Research and Innovation Engineer at Swegon, and lead author of the study.
Increased risks of physical and mental illness
According to a report from the WHO, tonal noise of the kind that occurs in ventilation systems can negatively affect human health. The study shows that long-term exposure to this kind of sound increases the risk of high blood pressure, cardiac arrest, tinnitus, hearing damage, sleeping problems and stress. Children's cognitive development can also be negatively affected by the noise levels stemming from ventilation systems.
Finding the source of what causes the tonal sound has therefore been of great interest to researchers and fan manufacturers for many years.
“I am sensitive to sound and sometimes have difficulty concentrating and sleeping with disturbing sounds. And I know that tonal sound can disturb our brain. When I read the WHO's reports on how tonal sound can also lead to diseases such as high blood pressure and even cardiac arrest, the work took on a whole new dimension,” says Martin Ottersten, who has worked with the project for four years.
Lower energy usage another benefit
With the help of advanced computer calculations, sometimes lasting weeks at a time, Martin Ottersten was able to study how air flows through the fan during rotation and where turbulence occurs. The calculations also provided audio data for the fan, which was used to locate the source of the tones.
After several variations, he managed to design a fan in such a way that the tonal sound decreased drastically, an improvement which could allow for much quieter and healthier indoor environments.
“By trying out different modifications to the fans and measuring the sound levels using very complex calculations on hundreds of computers, over several weeks, we could determine exactly where in the fan's construction the tonal sound originated and how to eliminate it. And what is more, we also observed that the efficiency of the fan increases as the tonal sound decreases,” says Martin Ottersten.
He believes that this research now has great potential to be put into practice, and that extremely quiet fans which do not produce tonal noise could soon be commercially available.
“We are currently seeking a patent for this technology and implementing it into our fans. After that we want to get them out to market, so that we can contribute to creating healthier indoor environments – as well as helping reduce energy consumption and carbon dioxide emissions.
The results of the study "A numerical method to predict and minimize fan tonal noise" have been published in the scientific journal Physics of Fluids.
https://aip.scitation.org/doi/10.1063/5.0055242
The study was carried out at the Division of Fluid Dynamics at the Department of Mechanics and Maritime Sciences, Chalmers University of Technology and was financed by Swegon AB.
More about the different types of sound generated by fans
Sound from fans consists of two types of sound: broadband and tonal sound. The broadband sound is heavier, but it’s the tonal sound – which is regular and reoccurring – that irritates and affects us humans the most. To reduce noise levels in workplaces, homes and schools, silencers are therefore installed so that people can stay in the premises for a longer period of time. These mufflers remove much of the broadband sound but are not as good at absorbing the more harmful tonal sound. In addition, the mufflers contribute to increased energy consumption and higher carbon dioxide emissions.
