Enhancing crop resilience: A novel approach to quantifying and predicting frost damage in winter wheat

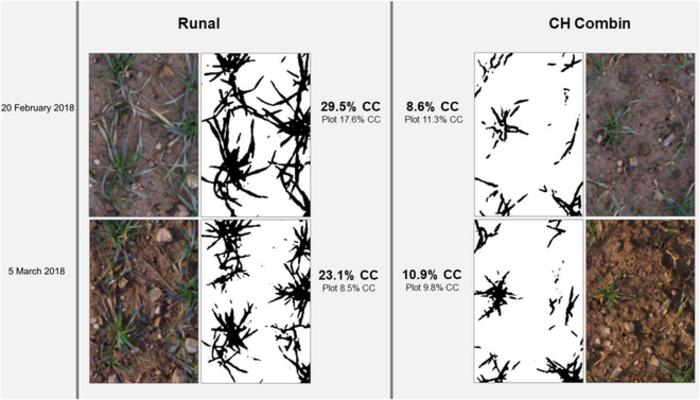

image: HTFP-based RGB image (color), plant-soil segmentation (black/white), and extracted CC per area, and plot (%) for 2 wheat varieties, Runal (susceptible to freezing stress) and CH Combin (more tolerant to freezing stress), before (20 February 2018) and after (5 March 2018) a cold spell.
Credit: Plant Phenomics
Abiotic stresses such as heat and frost severely limit plant growth, particularly affecting winter crops like wheat through senescence and leaf area reduction. Modern phenotyping methods, particularly high-throughput field phenotyping (HTFP), have made significant advances in monitoring and analyzing these effects. Current research focuses on the use of detailed, high-resolution images to quantify growth traits and assess damage from stresses such as frost. However, challenges remain in accurately modeling frost damage and understanding genotype-specific resilience. The challenge is to improve the accuracy of detecting and quantifying crop responses to abiotic stresses, particularly frost, to improve resilience and yield in varying climates.
In October 2023, Plant Phenomics published a research article entitled “Frost Damage Index: The Antipode of Growing Degree Days”.
This research quantified frost-induced reductions in plant growth by monitoring changes in canopy cover of thirty-six winter wheat genotypes over several years using time-resolved, high-resolution field imagery. A new concept, the Frost Damage Index (FDI), was developed to cumulatively summarize frost events, similar to growing degree days. Genotypes’ sensitivity to the FDI correlated with traditional visual scores used to assess winter hardiness, indicating their potential adaptability to other stresses such as drought or heat. The study spanned three years, each with different temperature regimes and cold spells. The focus was on the first 150 days after sowing, representing winter, and different patterns of canopy cover loss (ΔCC) and temperature dynamics were observed each year. A moderate to strong correlation was found between ΔCC and manual frost ratings after cold spells, indicating the effectiveness of the FDI in capturing genotype-specific frost sensitivity. The research process involved optimizing various parameters, including a 3-day lag time between cold spells and visible damage, a smoothing factor for temperature data, and a base temperature (Tbase) of -9℃ below which visible frost damage occurs. The genotype-specific sensitivity factor (s) was also calculated and significantly improved the predictive accuracy of ΔCC when used. The study confirmed that the inclusion of a lag phase and the smoothing of temperature curves significantly improved prediction accuracy. It also highlighted the genotype-specific nature of frost damage sensitivity, with necessitates the adjustment of parameters such as the sensitivity factor for each genotype.
Overall, the results highlighted the potential of the FDI in enhancing predictions of plant performance under frost stress, suggesting its use in breeding for frost tolerant genotypes and improving crop models by incorporating damage effects. This study represents a methodological advance in understanding and predicting genotype-by-environment interactions, particularly in relation to frost damage, by using high-throughput field phenotyping methods.
###
References
Authors
Flavian Tschurr1*, Norbert Kirchgessner1, Andreas Hund1, Lukas Kronenberg1,2, Jonas Anderegg1,3, Achim Walter1, and Lukas Roth1
Affiliations
1Department of Environmental System Sciences, Institute of Agricultural Sciences, ETH Zürich, Zürich, Switzerland.
2Crop Genetics, John Innes Centre, Norwich, UK.
3Department of Environmental System Sciences, Institute of Integrative Biology, ETH Zürich, Zürich, Switzerland.
About Flavian Tschurr
He is a professor in the Department of Environmental Systems Science at the Institute of Agricultural Sciences, ETH Zurich, Switzerland.
