Unraveling the impact of edge cracks on superconducting REBCO tapes: a leap in material durability and efficiency

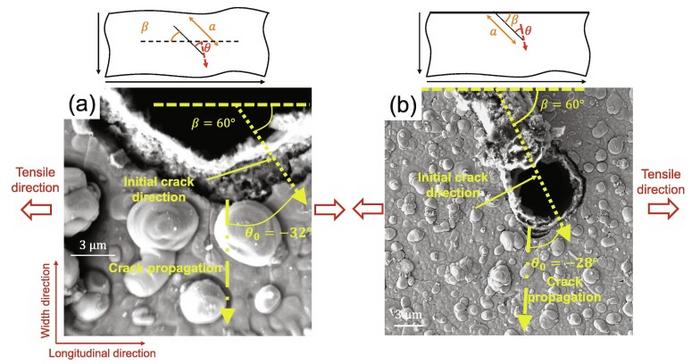

image: Crack propagation angles of oblique cracks at (a) tape center and (b) tape edge. Both cracks had an initial angle of 60. The crack propagations deflected from the initial crack angles.
Credit: hirong Yang, Yi Li, Peng Song, Mingzhi Guan, Feng Feng, Timing Qu.
In the realm of superconductivity, the durability and efficiency of materials like REBCO (Rare Earth Barium Copper Oxide) tapes are crucial for application in various high-tech fields. However, these materials face challenges, particularly when it comes to maintaining their superconducting properties under stress. A recent study delves into the intricate relationship between mechanical stress and the superconducting capabilities of REBCO tapes, offering new insights that could pave the way for more robust and reliable superconducting materials.
At the heart of this study is the examination of edge cracks caused by slitting process in REBCO tapes when subjected to tensile stress. These tapes, known for their high critical current capacity, are essential in many superconducting applications, from medical imaging equipment to particle accelerators. It was widely believed that even minor edge cracks can propagate and cause premature degradation of REBCO tapes when subjected to stress, raising concerns about the longevity and reliability of these materials in practical applications.
The research team, led by scientists from Tsinghua University, University of Huston and Chinese Academy of Sciences, employing advanced microscopic and computational techniques, meticulously analyzed how these edge cracks impact the tapes' ability to carry supercurrent without resistance. The team examined commercial REBCO tapes manufactured by different processes and found that when the stress intensity factor at the crack tip is below a certain threshold (KIC = 2.3 MPa√m), edge cracks do not propagate, leading to the conclusion that these cracks will not cause premature degradation.
One of the key takeaways from the research is a model using multiple edge crack properties to evaluate stress intensity factor. This model is particularly valuable for manufacturers, as it suggests that by controlling these factors, it might be possible to enhance the resilience of REBCO tapes against mechanical stress.
The implications of this study extend beyond the confines of the laboratory. In real-world applications, where superconducting tapes must often endure various forms of stress and strain, understanding the impact of physical imperfections becomes paramount. This research not only sheds light on the edge crack behavior of REBCO tapes, but also provides guidance for the slitting process and opens up new avenues for creating more durable and efficient superconducting materials, pushing the boundaries of what's possible in the world of superconductivity.
