Reforming agricultural AI: EasyDAM_V3 unveils next-gen automatic fruit labeling with optimal source domain selection and advanced data synthesis

In the dynamic realm of agricultural AI, deep learning-based fruit detection has gained prominence, particularly in smart orchards. These techniques, however, heavily depend on large, manually labeled datasets, a process both time-consuming and labor-intensive. The previous work introduced a generative adversarial network (GAN) method, EasyDAM, to mitigate labeling costs by generating simulated fruit images. Nonetheless, this approach faces challenges: firstly, it lacks adaptability across diverse fruit species, leading to performance fluctuations in varying orchard environments. Secondly, while it reduces labor in the target domain, it still necessitates manual labeling in the source domain, not fully eliminating manual processes. There exists a critical to develop methods for selecting optimal source domain datasets and achieving truly automated labeling, addressing these current limitations and advancing towards zero-cost automated label generation.

In July 2023, Plant Phenomics published a research article entitled by “EasyDAM_V3: Automatic fruit labeling based on optimal source domain selection and data synthesis via a knowledge graph”. In an endeavor to advance automatic fruit labeling with high efficiency and zero cost, this study introduces EasyDAM_V3, a novel approach that combines optimal source domain selection with synthetic dataset generation. EasyDAM_V3 aims to address two primary challenges: selecting the most suitable source domain fruit datasets for image translation and minimizing the manual annotation cost in the target domain.

The first aspect of EasyDAM_V3 involves a systematic selection of source and target domain datasets for image translation models. This process utilizes a multidimensional spatial feature model, enabling for the identification of the most appropriate source domain dataset that can correspond to multiple target domain fruits. The selection is based on analyzing phenotypic features like shape, color, and texture across various fruit datasets. For instance, in the study, pears were identified as the optimal source domain for translating images to target domains like citrus, apples, and tomatoes. This determination was made through a clustering algorithm and multidimensional feature space analysis, ensuring a higher fidelity in translation generalization. The second aspect focuses on constructing a knowledge graph to generate synthetic datasets with accurate label information. EasyDAM_V3 employs transparent background fruit image translation and an anchor-free detector for pseudo-label self-learning. This innovative approach can handle fruits of different scales and shapes, enhancing the final label generation accuracy.

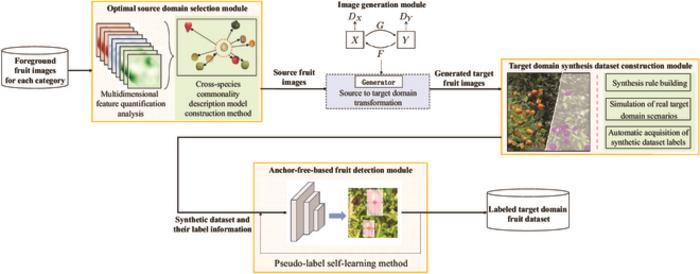

The experimental validation of EasyDAM_V3 involved citrus, apple, and tomato as the target domains. The process comprised three main parts: employing multidimensional feature quantization and spatial reconstruction to select the optimal source domain fruit, inputting these source fruits into the CycleGAN model for target domain image generation, and utilizing these images to construct synthetic datasets. These datasets were then used to train an anchor-free detector-based fruit detection model. Results from these experiments showed that EasyDAM_V3 could successfully translate and generate labels for the target domains using pears as the source domain, with high average precision rates around 90%. This demonstrates EasyDAM_V3's effectiveness in addressing both challenges of optimal source domain selection and reducing manual annotation costs.

In summary, the approach outlined by EasyDAM_V3 not only improves the applicability and domain adaptability of automatic labeling algorithms but also represents a significant step towards achieving efficient, cost-effective solutions in agricultural AI and smart orchard management.

###

References

Authors

Wenli  Zhang^1*, Yuxin  Liu¹, Chao  Zheng¹, Guoqiang  Cui¹, and Wei  Guo^2*

Affiliations

¹Information Department, Beijing University of Technology, Beijing 100022, China.

²Graduate School of Agricultural and Life Sciences, The University of Tokyo, Tokyo 188-0002, Japan.

About Wenli Zhang & Wei Guo

Wenli  Zhang: She is a professor of Information Department at Beijing University of Technology. Her research areas are Image Processing and Pattern Recognition.

Wei  Guo: He is an associate professor at the Graduate School of Agricultural and Life Sciences, The University of Tokyo. His research interests are image sensing, machine learning, and plant phenotyping.
