Miniaturized High-Performance Filter Capacitor Based on Structurally Integrated Carbon Tube Grids (IMAGE)

Hefei Institutes of Physical Science, Chinese Academy of Sciences

Miniaturized High-Performance Filter Capacitor Based on Structurally Integrated Carbon Tube Grids

Caption

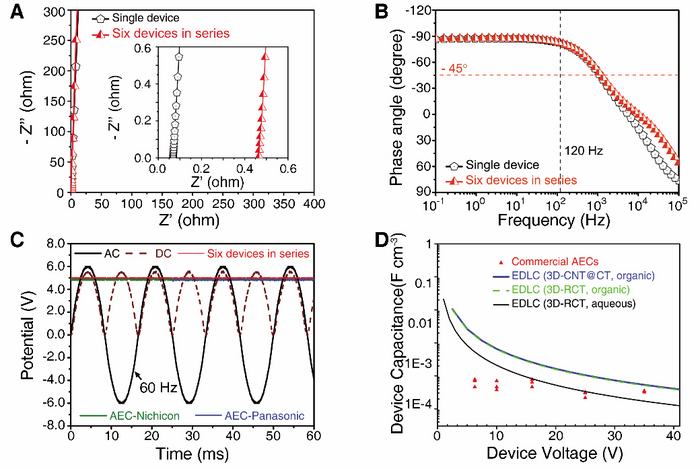

Figure 3. Performance characteristics of single EDLC and EDLCs in series. (A) Nyquist plots. (B) Phase angle vs. frequency. (C) Filtering results of the six EDLCs in series in comparison with AECs. (D) A volumetric comparison of 3D-CT grid-electrode EDLCs with commercial AECs (red triangles, Panasonic, Nichicon, and Nippon, Japan).
