New transmitter design for small satellite constellations improves signal transmission

Today, there are many emerging applications for small satellite constellations, ranging from space-borne networks to environmental monitoring. However, small satellites have special needs when it comes to transmitter (TX) technology. For one, they have stringent limitations on power consumption as they draw energy from solar panels and cannot easily dissipate generated heat. Moreover, small satellites need to communicate with fast-moving targets that can be over a thousand kilometers away. Thus, they require efficient and precise beam steering capabilities to direct most of the transmitted power towards the receiver.

On top of this, small satellite TXs have to generate different types of circularly polarized (CP) signals depending on the situation. Put simply, they need to faithfully generate both left-handed and right-handed CP signals to avoid interference with another transmitted signal with the opposite handedness. Additionally, they sometimes need to generate dual CP signals to establish high-speed data links.

Satisfying all these requirements simultaneously has proven to be challenging, especially when TXs are meant to operate with high-speed communication. Fortunately, a research team from Japan led by Associate Professor Atsushi Shirane from Tokyo Institute of Technology (Tokyo Tech), have been working on a convincing solution. Their latest paper, which will be presented at the 2023 IEEE International Solid-State Circuits Conference, describes an innovative TX design that solves all the above-mentioned issues, paving the way for better small satellite-based communications.

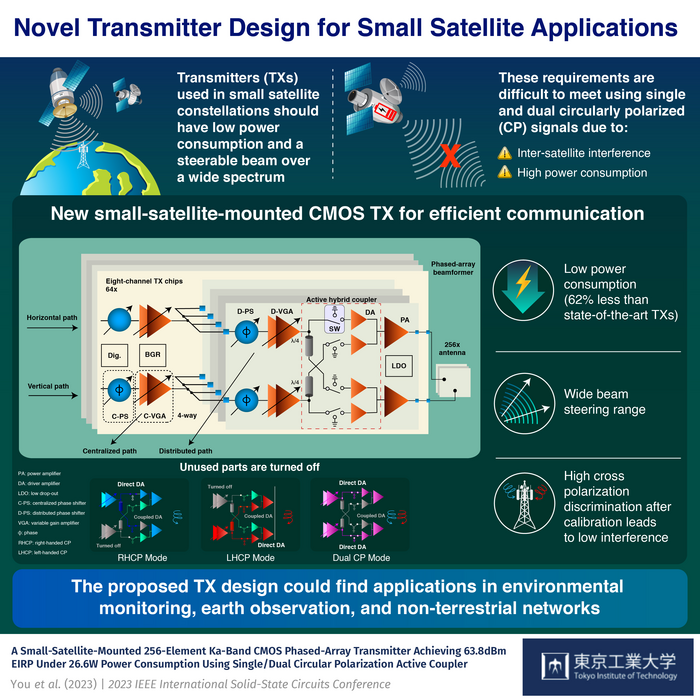

The proposed TX operates from 25.5 GHz to 27 GHz in the Ka-band used for next-generation high-speed satellite communications. Its beam steering capabilities are governed by a 256-element active phased-array configuration. Put simply, the TX drives 256 tiny antennas that all emit the same signal but with carefully calculated phase delays between them. This enables precise steering of the output beam power by leveraging constructive and destructive interference between signals.

The signal to be transmitted to each antenna originally comes as two independent linear components, whereupon the proposed TX integrated circuit (IC) converts these two signals into a CP signal with the required phase delay. Since each TX IC has both centralized and distributed paths for the input signals, one can calibrate the signal phase and amplitude to vastly improve the intelligibility between left- and right-handed CP signals independently of beam steering calibrations.

However, the most important feature of this TX design is the use of an active hybrid coupler to select the CP transmission mode. The generation of left, right, and dual CP signals involves various elements on the IC, including amplifiers and phase shifters. The active hybrid coupler can “alter” the layout of the IC in real time, shutting off components that are not required in the desired transmission mode, saving power in the process.

The team tested various performance metrics of the proposed TX, and the results were promising. “Our TX achieved 63.8 dBm of equivalent isotropically radiated power with a power consumption of 26.6 W, which is a 62% reduction compared to the state-of-the-art TX with the same level of equivalent power,” highlights Shirane.

To top it off, this small TX can be developed using standard manufacturing technology. “The proposed phased-array chip is fabricated in a 65 nm bulk CMOS process in a wafer-level chip-scale package with a die size of only 4.4 mm × 2.5 mm,” he remarks.

With any luck, the study will help us reap the benefits of small satellite-based communication sooner!
