Interfacial engineering for improved stability of flexible perovskite solar cells

They published their work on Dec. 21 in Energy Material Advances.

“For the perovskite film, there are some factors influencing the intrinsic material stability,” said paper author Qi Chen, professor from Beijing Key Laboratory of Construction Tailorable Advanced Functional Materials and Green Applications, MIIT Key Laboratory for Low-Dimensional Quantum Structure and Devices, Experimental Center of Advanced Materials, School of Materials Science and Engineering, Beijing Institute of Technology. “(a) Stress would accumulate with temperature changes because of mismatched lattice and thermal expansion coefficients. It brought about delamination, or accelerated decomposition. (b) Both water vapor and oxygen could have an irreversible reaction with the perovskite crystal. (c) Illumination causes the weak link in the perovskite or adjacent layers to break.”

Chen explained that besides the above stabilizing factors of the rigid devices, the stability of f-PSC is affected by other conditions. The degradation mechanism of flexible devices should be explored and summarized in more detail.

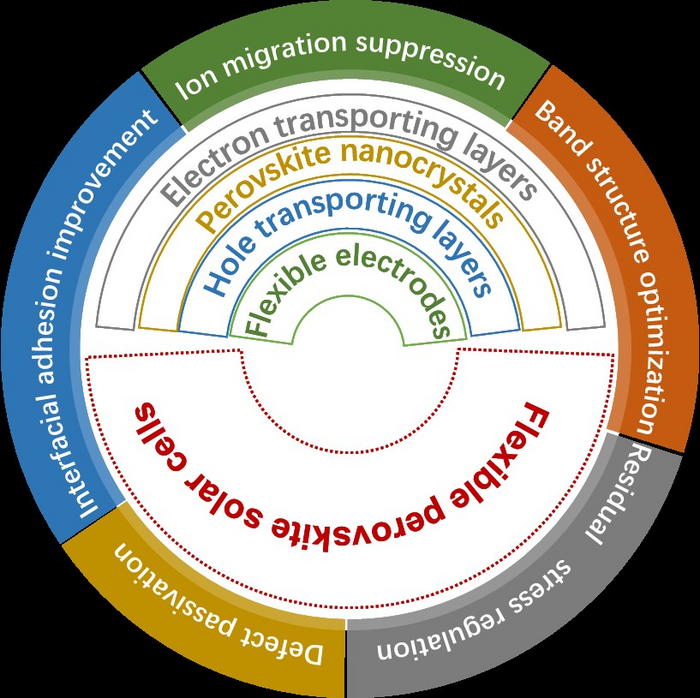

“Interface Modification can passivate defects, improve interfacial adhesion, suppress ion migration, optimize band structure and regulate residual stress,” Chen said. “Based on the latest research progress, we summarize the application of Interface Modification in flexible perovskite solar cells.”

For the hole transport layers and electron transport layers, Interface Modification can increase the ability of the transport layer to block water and oxygen, and reduce the interface recombination by controlling the SnO₂ nanocrystals, which is the key to enhance device performance.

As for the active layer, the rough morphology of the flexible substrate directly affects the quality of the perovskite film, and the deep energy level defects inside and on the surface lead to increased interfacial nonradiative recombination.

The Interface Modification not only improves the quality of the perovskite film, but also improves the interfacial adhesion and the flexibility of the film, thus improving the performance of the cell.

In addition, the robustness, conductivity, and transparency of flexible electrodes can be improved by interfacial engineering.

“To further improve the efficiency and stability of f-PSCs, the complex interplay between those different interfaces should be studied in detail,” Chen said. “Interfacial engineering plays a critical role in the optoelectronic performance of f-PSCs. We systematically investigate the influence of the flexible substrate on charge extraction, charge transportation, and charge recombination in f-PSCs. A deeper understanding of interfacial charge dynamics is conducive to figuring out the degradation mechanism of f-PSC.”

“Despite significant progress in recent years, f-PSCs have to reach large-scale production and commercial operation. Therefore, interface engineering is still the key way to solve the issues plaguing the functionality and operation of f-PSCs,” Chen said.

First, a thorough understanding of the interfacial characteristics and the related charge carrier dynamics is essential for the industrialization of f-PSC in the future. To meet the requirements of large-area device fabrication, the innovative active light-absorbing material and CTL could be developed until we accumulated sufficient precise knowledge. After reducing photovoltaic energy loss and overcoming instability issues, the industrialization of f-PSCs could be promoted.

Second, interfacial engineering is also critically important for flexible tandem cells. If subcells are connected in series, then the interconnection layers should have outstanding charge transporting ability to act as recombination layers. Moreover, the upper layer should ensure satisfactory light absorption by the back cell. Only by delicate control of the interface property can those tandem cells to be optically thick and electrically thin enough. The public is aware of the true potential of flexible perovskite photovoltaic devices.

Other contributor includes Jie Dou, Beijing Key Laboratory of Construction Tailorable Advanced Functional Materials and Green Applications, MIIT Key Laboratory for Low-Dimensional Quantum Structure and Devices, Experimental Center of Advanced Materials, School of Materials Science and Engineering, Beijing Institute of Technology.

The National Natural Science Foundation of China (U21A20172 and 21975028), the Beijing Natural Science Foundation (JQ19008), and the China Postdoctoral Science Foundation (2020M670144). supported this work.

###

Reference

Authors: JIE DOU AND QI CHEN

Title of original paper: Interfacial Engineering for Improved Stability of Flexible Perovskite Solar Cells

Journal: Energy Material Advances

DOI: 10.34133/energymatadv.0002

Affiliations:

Beijing Key Laboratory of Construction Tailorable Advanced Functional Materials and Green Applications, MIIT Key Laboratory for Low-Dimensional Quantum Structure and Devices, Experimental Center of Advanced Materials, School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, China.

About Prof. Qi Chen

Dr. Qi Chen, Professor, Vice Dean, School of Materials Science & Engineering, Beijing Institute of Technology (BIT). He received his BS/MS at Tsinghua University in 2005 and 2007, Ph.D. in University of California at Los Angeles (UCLA) in 2012. Then he joined California NanoSystem of Institute at UCLA as a postdoc. He joined BIT in 2016.
