Low tortuosity electrode design facilitates the development of high-performance LMO batteries

They published their work on Dec. 21^st in Energy Material Advances.

“The development of electric vehicles and electric bicycles has sparked interest in powered lithium-ion batteries.” said paper author Jia Xie, professor at school of Electrical and Electronic Engineering, Huazhong University of Science and Technology (HUST). “It is critical to developing advanced electrode materials with excellent rate performance, cycling stability and high-energy densities.”

Xie explained that spinel LiMn₂O₄ (LMO) is deemed as a promising cathode material in power lithium-ion batteries, owing to its low cost, reliable security, high operating voltage and fast 3D lithium-ion transport channels.

But the cycling stability of LMO limits its large-scale application. According to Xie, the challenges are the irreversible phase transition and Mn dissolution. The irreversible phase transition from spinel-structured LiMn₂O₄ to defect spinel-structured λ-MnO₂, LiMn₃O₄ or even rock-salt-structured MnO occurs during repeated cycling. Continuous accumulation of irreversible phase transitions leads to cracks’ generation in LMO particles. The newly exposed surface created by cracks of LMO particles can interact with electrolyte and thus promote the dissolution of Mn from LMO, resulting in over-lithiated LMO surface, which in turn accelerates irreversible phase transition and particle cracks. All of these contribute to the deterioration of LMO particles and fast performance decay, especially under fast charging conditions.

According to Xie, advanced strategies including element doping, surface modification and morphological regulation have been proposed to alleviate the degradation of LMO particles. For instance, metal elements (Mg, Ni) and non-metal elements (B, P), etc. are employed as doping elements to replace trace amounts of Mn, forming stable chemical bonds among doping elements and O. Robust chemical bonds keep LMO in a stable structure, resulting in better electrochemical performance than the pristine LMO. Al₂O₃, TiO₂, ZrO₂ and Li₃PO₄ and other compounds are used as coating layers to cover LMO surface. The coating layer is equivalent to an artificial CEI, which reduces the direct contact between LMO and the electrolyte, thereby suppressing the dissolution of Mn and volume change. In addition, regulating the morphology of LMO such as nanostructured materials and truncated octahedral crystal structure design is also an effective means to improve the performance. These strategies focus mainly on the modification of LMO material itself.

“This paper mitigates the degradation of LMO from the perspective of electrode structure design, and thus improves the cycling stability of LMO,” Xie said. “The ice-templating method was adopted to construct low-tortuosity LMO electrode based on the CMC binder. The resulted electrodes have straight channels through the electrode in the cross section.”

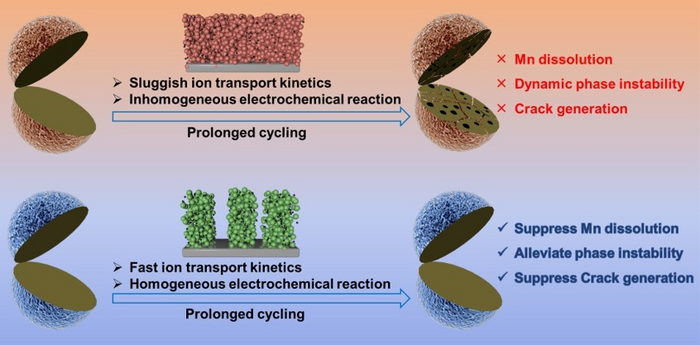

“The low-tortuosity structure enables LMO electrodes fast lithium-ion diffusion and small concentration polarization, leading to uniform electrochemical reaction within micro-regions of the electrodes. Furthermore, the fast lithium-ion transport kinetics and even mesoscopic-scale reactions of low-tortuosity LMO electrode effectively alleviate irreversible phase transition and Mn dissolution as well as suppress cracks generation in LMO particles.” Xie said.

“The fast ion transport kinetic behavior and stable phase structure give the low tortuosity LMO electrode excellent rate performance and cycling stability, which makes it a more competitive cathode,” Xie said. “Low tortuosity electrode structure design provides a new way to develop high-performance LMO batteries.”

Other contributors include Renjie He, Sheng Lei, Mengchuang Liu, Mingsheng Qin, Wei Zhong and Shijie Cheng, State Key Laboratory of Advanced Electromagnetic Engineering and Technology, School of Electrical and Electronic Engineering, Huazhong University of Science and Technology.

The following authors have additional affiliations: Renjie He, Sheng Lei, Mingsheng Qin and Wei Zhong, School of Materials Science and Engineering, Huazhong University of Science and Technology. Mengchuang Liu, School of Chemistry and Chemical Engineering, Huazhong University of Science and Technology.

The National Natural Science Foundation of China (No. U1966214) supported this work.

###

Reference

Authors: RENJIE HE, SHENG LEI, MENGCHUANG LIU, MINGSHENG QIN, WEI ZHONG, SHIJIE CHENG, AND JIA XIE

Title of original paper: Enhanced Dynamic Phase Stability and Suppressed Mn Dissolution in Low-Tortuosity Spinel LMO Electrode

Journal: Energy Material Advances

DOI: 10.34133/energymatadv.0004

Affiliations:

¹State  Key  Laboratory  of  Advanced  Electromagnetic  Engineering  and  Technology,  School  of  Electrical  and Electronic Engineering, Huazhong University of Science and Technology, Wuhan 430074, P. R. China.

²State Key Laboratory of Materials Processing and Die & Mould Technology, School of Materials Science and  Engineering,  Huazhong  University  of  Science  and  Technology,  Wuhan  430074,  China.

³School  of  Chemistry and Chemical Engineering, Huazhong University of Science and Technology, Wuhan 430074, China.

About Dr. Jia Xie

Jia Xie received his BS degree from Peking University in 2002 and his PhD from Stanford University in 2008. He joined Huazhong University of Science and Technology (HUST) as a Full Professor in 2015. His current research interests focus on battery and key materials, large-scale electrochemical energy storage technology for power grid and electric vehicle.
