Ultra-sensitive optical sensor can reduce hydrogen’s risks

In the pursuit of clean and renewable energy, hydrogen plays an important role. But a major challenge facing this transition is that the gas is explosive when mixed with air. For this reason, it is crucial to be able to detect hydrogen leaks as early as possible. Now researchers at Chalmers University of Technology, Vrije Universiteit Amsterdam and Eindhoven University of Technology, have developed an optical sensor that can detect record low levels of hydrogen.

Hydrogen is seen as an important part of the decarbonisation of the heavy transport sector and around the world hydrogen-powered trains, trucks and airplanes are being developed and deployed. Even in heavy industry, hydrogen is regarded as very important, for example for the production of fossil-free steel.

The risks of storing or using hydrogen are well known. Only four percent hydrogen is required in air for the formation of an explosive mixture (knallgas) that can ignite at the slightest spark. Therefore, it is important that ultra-sensitive sensors are in place to monitor leaks and alarm at critical levels.

Safety of utmost importance in hydrogen use

Together with Dutch colleagues, researchers at the Department of Physics at Chalmers University of Technology, Sweden, have now developed an optical hydrogen sensor that detects record-low levels of hydrogen. It thus joins the most sensitive sensors in the world.  The new research results are presented in an article in Nature Communications.

"Safety is of the utmost importance in all use and storage of hydrogen. If leaks are detected early, they can be fixed so that you hopefully do not have to take the plant or vehicle out of service at all," says Chalmers Professor Christoph Langhammer, one of the main authors of the scientific article.

AI technology led the way

The optical hydrogen sensor consists of many metal nanoparticles that work together to detect hydrogen in their surroundings. The approach to how the new sensor was designed differs from what has been done previously. Instead of producing a large number of samples and testing them individually to see which one works best, the researchers have used advanced AI technology to create the optimal interaction between the particles based on their distance to each other, diameter and thickness. The result is a sensor that detects changes in hydrogen concentration that are as small as a few hundred thousandths of a percent.

The secret behind the new sensor's low detection limit is the combination of the arrangement of the particles in a regular pattern on a surface and their fine-tuned dimensions. This turned out to be more favourable for the sensitivity of the sensor than the random particle arrangement used in previous sensors of the same type.

Christoph Langhammer's research group has previously been able to present the world's fastest hydrogen sensor. For him, it is clear that many different types of sensors are needed and that they have to be optimised for specific applications.

"The technology around hydrogen has taken a giant leap and therefore today's sensors need to be more accurate and tailored for different purposes. Sometimes a very fast sensor is needed, sometimes one is needed that works in a harsh chemical environment or at low temperatures. A single sensor design cannot meet all needs”, says Christoph Langhammer, who is also one of the founders of a new competence centre: TechForH2.

Industry and academia in new collaboration on hydrogen

The new Chalmers-led centre brings together both academia and industry to develop new hydrogen technology with focus on the decarbonisation of heavy transport systems. TechForH2 is led by Chalmers Professor Tomas Grönstedt at the Department of Mechanics and Maritime Sciences.

"When the research community and industry merge, it can take us to the next level, such that what we produce can be applied and meet the needs and challenges that exist in the industry. This applies to sensor development, as well as research related to the propulsion of heavy vehicles or aeroplanes using hydrogen gas," says Tomas Grönstedt, who mentions that an electric aircraft with a range of 500 kilometres could increase its range to 3000 kilometres if it was powered by hydrogen.

How the optical hydrogen sensor works

The sensor that the researchers have developed is based on an optical phenomenon, plasmons, which occur when metal nanoparticles capture light and give the particles a distinct colour. If the nanoparticles are made of palladium or a palladium alloy, their colour changes when the amount of hydrogen in the surroundings varies, and the sensor can trigger an alarm if the levels become critical.

To find the ultimate combination of the arrangement on the surface and geometry of the particles in the sensor, the researchers used an artificial intelligence algorithm called particle swarm optimisation to achieve the highest possible sensitivity to the exposure to hydrogen. Placing the particles in a very precisely defined regular pattern turned out to be the answer.

Based on the AI-design, the optimised optical hydrogen sensor was fabricated and verified to be the first of its kind to optically detect hydrogen in the "parts per billion" range (250 ppb).

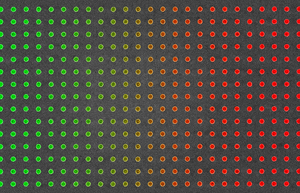

The new sensor is based on an optical phenomenon plasmons which occur when metal nanoparticles capture light and give the particles a distinct colour This colour changes when the amount of hydrogen in the surroundings varies and the sensor can alarm at critical levels.

More about the research

The scientific paper Inverse designed plasmonic metasurface with parts per billion optical hydrogen detection has been published in Nature Communications and is written by Ferry Anggoro Ardy Nugroho, Ping Bai, Iwan Darmadi, Gabriel W. Castellanos, Joachim Fritzsche, Christoph Langhammer, Jaime Gómez Rivas and Andrea Baldi. The researchers are active at Chalmers University of Technology, Eindhoven University of Technology and Vrije Universiteit Amsterdam. The researchers at Vrije and Eindhoven are behind the AI-aided design of the sensor surface and the characterisation of its optical properties, while the researchers at Chalmers have manufactured the sensor surface and performed the hydrogen sensing measurements.

The new sensor’s practical applicability will now be further investigated within the newly started competence centre TechForH2, which is coordinated by Chalmers.

The research has been partly funded by the Swedish Foundation for Strategic Research and the Swedish Energy Agency. Parts of the work have taken place in the Cleanroom at Chalmers and at Chalmers Material Analysis Laboratory (CMAL) under the umbrella of Chalmers Excellence's initiative Nano.

More about the new TechForH2 Competence Centre

TechForH2 is a competence centre for hydrogen technology that is coordinated and led by Chalmers, with RISE Research Institutes of Sweden as an academic partner. A number of industrial partners are involved in TechForH2: Volvo, Scania, PowerCell, Johnson Matthey, Oxeon, GKN Aerospace, Insplorion, Siemens Energy and Stena.

TechForH2 will, among other things, focus on vehicle-integrated energy storage, the needs of the manufacturing industry, sensors, fuel cells and technology /instruments and innovations in the future hydrogen society.

The competence centre has received SEK 54 million in funding from the Swedish Energy Agency and has a total bid of SEK 161 million for the first five years, with the possibility of a five-year extension.

With the support of nine new doctoral students and eight postdoctoral researchers, the hope is now to be able to contribute to knowledge building and education in the field, and to increase the pace of introduction of new hydrogen technology to thereby contribute to the transition to a fossil-free society.
