A thermally stable anatase for sodium-ion battery

They published their work on October 6^th in Energy Material Advances.

“The development of cost effective and high performance batteries is in favor with the general public,” said paper author Xiu Song Zhao, professor at Institute of Materials for Energy and Environment, College of Materials Science and Engineering in Qingdao University. “With the rapid promotion of new energy vehicles, the demand for lithium-ion batteries is increasing, however, the resources of lithium on earth are scarce, and it is of great practical importance to develop and explore new energy storage technologies that can replace lithium-ion batteries.”

Lin explained that sodium-ion batteries for large-scale energy storage applications attract increasing attention, which would be a powerful candidate to substitute lithium-ion batteries.

“Sodium is much more abundant in the earth's crust than lithium, making it more suitable for large-scale electrochemical energy storage. The potential of sodium-ion half batteries is 0.3 V higher than that of lithium-ion batteries, leading to a wider choice of electrolytes. And aluminum collectors can be used for the anode, which will again reduce the cost. However, the larger radius and heavier molar weight of sodium ion than lithium ion lead to fundamentally different requirements for electrode materials. Therefore, the development of high performance anode materials is one of the keys to realizing the sodium-ion batteries technology,” Zhao said. “Titanium dioxide is a promising anode material for sodium-ion batteries owing to its non-toxicity, low cost, and the abundance of titanium in nature. Anatase is more conductive in storing sodium ions due to its special stacking of TiO₆ octahedra with two-dimensional channels for Na⁺ transport.”

However, some obstacles hinder the research progress of anatase. According to Zhao, the key challenges for anatase, especially their poor electron conductivity and ion diffusion significantly limiting its rate capability and long-term cycling performance are still demand of deep exploration. The poor rate capability limits their applications in high-power electronic devices, and poor cycling performance significantly hinders the practical realizations of sodium-ion batteries.

To overcome these challenges, Zhao said many studies focus on coating conductive materials, nano-structuring and constructing porous structure. Zhao and his team demonstrated a sol-gel method to synthesize spongy, thermally stable anatase covered with carbon. The special structure creates channels for electrolyte ion transport and increases the interfacial area for charge storage.

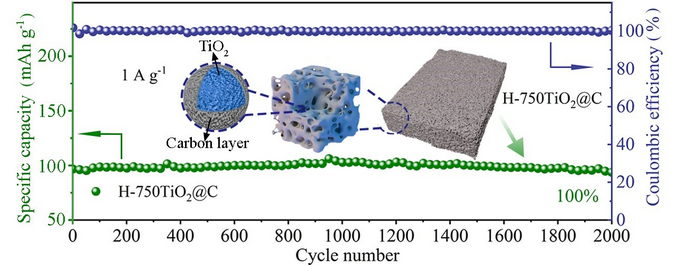

When the synthesized anatase was tested in a half battery, the researchers found that the battery exhibited a reversible specific capacity of 228 mAh g^-1 at a current density of 0.05 A g^-1 with 100% capacity retention after 2000 cycles at 1 A g^-1. Both in-situ X-ray diffraction and Raman spectroscopy resulted reveal a nearly zero-strain characteristic of anatase during charge/discharge processes. In-situ transmission electron microscopy, ex-situ X-ray photoelectron spectroscopy and scanning electron microscopy resulted suggest an irreversible sodiation-activation process to form a sodiated-TiO₂ phase during the initial discharge process. A full coin cell assembled with anatase as the anode and Na₃V₂(PO₄)₃ as the cathode delivered an energy density of 220 Wh kg^-1.

“This work prepared anatase with a special structure to improve the electron conductivity and ion diffusion kinetics, resulting in good rate performance and excellent cycling stability for sodium-ion storage,” Zhao said. “In-situ and ex-situ characterization reveals the sodium storage mechanism, indicating that a sodium activation process occurs during the initial sodiation resulting in a low initial coulombic efficiency. This work provides a method for synthesizing high performance titanium dioxide-based anode materials and ideas for studying the storage mechanism of the anatase.”

Zhao is also affiliated with the Institute of Materials for Energy and Environment, College of Materials Science and Engineering, Qingdao University. Other contributors include Fujie Li and Chao Wang, Institute of Materials for Energy and Environment, College of Materials Science and Engineering, Qingdao University.

The start-up funding of Qingdao University (No. DC2000005025) supported this work.

###

Reference

Authors:

Fujie Li,¹ Chao Wang,¹ and Xiu Song Zhao¹

Title of original paper:

Sodium-Ion Storage Properties of Thermally Stable Anatase

Journal:

Energy Material Advances

DOI:

10.34133/2022/9876319

Affiliations:

Institute of Materials for Energy and Environment, College of Materials Science and Engineering, Qingdao University, Qingdao 266071, China

About Dr. Xiu Song Zhao:

Xiu Song Zhao is National special expert, Fellow of the Royal Society of Chemistry, Shandong Province Taishan Scholars Advantageous Disciplines Leading Talents, Shandong Taishan Scholar Distinguished Professor. Mainly engaged in the application of nanomaterials in the fields of energy and environment. In recent years, a lot of innovative work has been done in the use of new electrode materials for flexible sodium-ion batteries and lithium-ion batteries, which has been highly concerned and recognized by domestic and foreign counterparts. He has published more than 430 SCI papers in internationally recognized journals such as Chem. Soc. Rev., J. Am. Chem. Soc., Angew. Chem. Int. Ed., Energy Environ. Sci., Adv. Mater., Adv. Funct. Mater., His papers have been cited more than 37,000 times and his h-index is 89. He has been selected as one of the highly cited Researchers in the world by Clarivate continuously since 2018 and has been selected as one of the highly cited scholars in China by Elsevier 2021.
