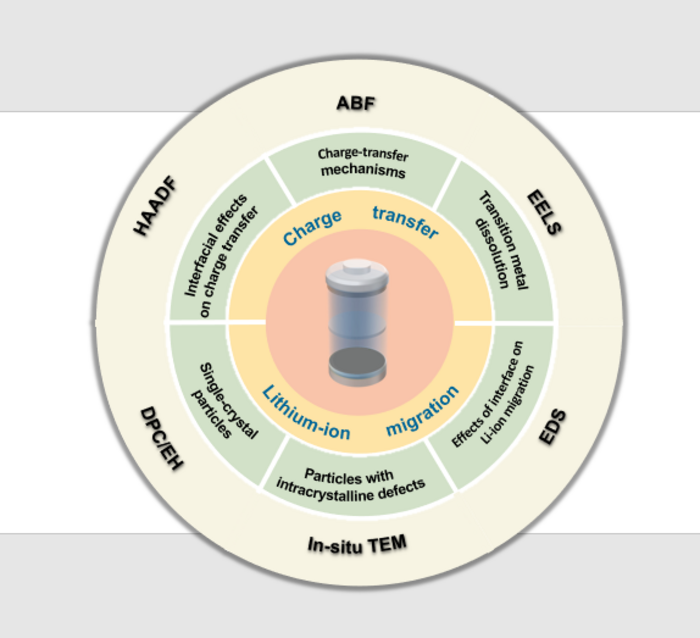

image: A review paper by a Tianjin University of Technology research team used various advanced electron microscopy and associate characterization techniques to clarify two structure-based mechanisms of lithium-ion batteries. view more
Credit: Nano Research Energy, Tsinghua University Press
Seeing is believing — or, rather, seeing can aid in understanding, especially when it comes to the mechanisms underpinning lithium-ion batteries. Despite near-ubiquitous use in cell phones, computers and more, the complex electrochemical environments of lithium-ion batteries remain murky. To better understand and to improve battery performance, researchers examined the current scientific literature and used electron microscopy to take a closer look at the charge-transfer and lithium-ion migration mechanisms that produce power.
This study was publicly available online on Sept. 6 in Nano Research Energy.
“Commercial lithium-ion batteries are widely used as energy storage devices, including electric vehicles, portable electronics and grid energy storage,” said Yi Ding, a professor of Tianjin University of Technology. “Energy, power, charge-discharge rate, cost, cycle life, safety and environmental impact are to be considered while adopting lithium-ion batteries for a suitable application, but each specific application faces a variety of different challenges.”
The amount of energy stored is important for portable electronics, while cost and safety are more important for electric vehicles, for example. Cost and safety are also important for energy grid needs, but energy density becomes less so than for electric vehicles. The trade-off between these elements shift based on need, but the ability to tune performance is limited by incomplete understanding of the materials used in batteries.
“The active electrode materials are the main portion responsible for the cell chemistry and performance and, ultimately, affect the commercialization of the constructed battery,” Ding said. “The performances, such as cycle life and energy density, of existing commercial electrode material systems still need to be improved, so it is important to understand the inherent physical and chemical properties, such as structural evolution/kinetics during lithium de-embedding and the effect of electrode-electrolyte interface on the performance of lithium-ion batteries.”
The researchers reviewed recent advances in electron microscopy to see how traditional characterization techniques measure up when it comes to understanding the structure-activity relationships of commercial lithium-ion batteries.
“By comparing with the characterization content obtained by traditional characterization techniques, such as X-ray diffraction and X-ray photoelectron spectroscopy, we illustrate the advantages and limitations of common electronic microscopes and recently developed advanced electronic microscopic characterization techniques, such as in situ electron microscopy technology, in this critical research,” Ding said.
The researchers examined how advanced electron microscopy and the associated characterization techniques can provide different insights into how, for example, lithium ions migrate in the battery to produce charge or how charge transfer can trigger energy use. They specifically focused on transition metal dissolution and charge transfer mechanism in the charging-discharging process of lithium-ion battery positive electrodes; the structure and evolution of cathode-electrode interfaces and solid electrolyte interphase during long-term cycling; and the effect of electrode structure and interface on lithium-ion migration.
The conclusion, according to Ding, is that next-generation lithium-ion battery technologies with better cost and performance benefits are needed.
“We propose the possibility of combining electron microscopy with other techniques to obtain more comprehensive information,” Ding said, noting that electron microscopy has three common limitations in battery assessment. These include inconsistent electrochemical environments between electron microscopy fields and actual batteries; unstable time windows that can skew data related to evolution of the sample; and certain batteries cannot be quantitatively assessed at the nanoscale. “Even with limitations, these discussions allow researchers to gain a deeper understanding of how commercial lithium-ion batteries operate at the microscale and provide guidance for design strategies for high-performance practical batteries.”
Other contributors include Chao Li, Bowen Liu and co-corresponding author Ningyi Jiang, Tianjin Key Laboratory of Advanced Functional Porous Materials, Institute for New Energy Materials and Low-Carbon Technology, School of Materials Science and Engineering, Tianjin University of Technology. Jiang is also affiliated with Tianjin University’s School of Chemical Engineering and Technology.
The National Key Research and Development Program of China, the National Natural Science Foundation of China and the National Science Fund for Distinguished Young Scholars funded this work.
##
About Nano Research Energy
Nano Research Energy is launched by Tsinghua University Press, aiming at being an international, open-access and interdisciplinary journal. We will publish research on cutting-edge advanced nanomaterials and nanotechnology for energy. It is dedicated to exploring various aspects of energy-related research that utilizes nanomaterials and nanotechnology, including but not limited to energy generation, conversion, storage, conservation, clean energy, etc. Nano Research Energy will publish four types of manuscripts, that is, Communications, Research Articles, Reviews, and Perspectives in an open-access form.
About SciOpen
SciOpen is a professional open access resource for discovery of scientific and technical content published by the Tsinghua University Press and its publishing partners, providing the scholarly publishing community with innovative technology and market-leading capabilities. SciOpen provides end-to-end services across manuscript submission, peer review, content hosting, analytics, and identity management and expert advice to ensure each journal’s development by offering a range of options across all functions as Journal Layout, Production Services, Editorial Services, Marketing and Promotions, Online Functionality, etc. By digitalizing the publishing process, SciOpen widens the reach, deepens the impact, and accelerates the exchange of ideas.
Journal
Nano Research Energy
Article Title
Elucidating the charge-transfer and Li-ion-migration mechanisms in commercial lithium-ion batteries with advanced electron microscopy
Article Publication Date
6-Sep-2022
