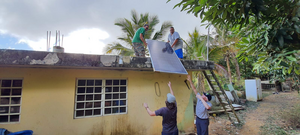

image: Solar panels are installed on commercial buildings to create independent microgrids in Adjuntas, Puerto Rico. Researchers at Oak Ridge National Laboratory are developing a new technology to manage how the microgrids work together. view more
Credit: Fabio Andrade
When Hurricane Maria battered Puerto Rico in 2017, winds snapped trees and destroyed homes, while heavy rains transformed streets into rivers. But after the storm passed, the human toll continued to grow as residents struggled without electricity for months. Five years later, power outages remain long and frequent.
Microgrids are small networks that generally have their own energy supply from nearby renewable sources like wind and solar. If battery storage is added, microgrids can be isolated and function independently in “island mode” when the broader utility network fails.
ORNL engineers Ben Ollis and Max Ferrari are leading a team to develop a microgrid orchestrator to deploy in the Puerto Rican town of Adjuntas. A community microgrid project is already being installed there, through a partnership between local nonprofit Casa Pueblo and the Honnold Foundation.
Honnold, which funds solar projects to reduce global energy poverty, is investing $1.7 million to create two microgrids with solar and battery storage, said Honnold project coordinator Cynthia Arellano. The solar arrays were installed last year and will be hooked to the remaining infrastructure being added this year.
That’s where ORNL steps in: Creating a novel orchestrator tool to manage a cluster of microgrids so they directly support and communicate with each other, making them more resilient during long power outages. For example, if one microgrid loses part of its solar generation, the adjacent microgrid could export power to its neighbor, minimizing the impact of the damage.
“I don’t know of a microgrid controller anywhere that can communicate and coordinate with another controller,” Ollis said. “We’re designing an architecture for multi-microgrid controls, so any number of microgrids can operate independently but share information to an orchestrator that will predict when switching, routing and connecting should happen.”
Ferrari said initial simulations indicate the microgrids could keep each other running at least a week. But with ideal conditions, they could potentially keep operating indefinitely.
That isn’t just a matter of convenience. “A lot of people died after the hurricane, and many of the deaths were related to power failures,” said Arturo Massol-Deyá, executive director of Casa Pueblo, which promotes fair and sustainable development around Adjuntas. This longtime community organization installed a solar array at its building in 1999. After Hurricane Maria, Casa Pueblo was able to share the electricity it generated with residents relying on home medical equipment like respirators.
“We noticed how many people got sick who were pre-diabetic, or had high blood pressure, or were exposed to unhealthy living conditions and food – preventable conditions,” said Massol-Deyá. “Energy security being interrupted is about quality of life, and there were long-term consequences in the community.” Grassroots support for solar power built steadily as a result.
Community-wide benefits
The Adjuntas microgrids include solar installations on the roofs of 13 businesses, whose owners agree to provide critical services like medicine, refrigeration and cell phone charging to residents during major power outages. In return, the businesses save money on electricity and avoid the use of expensive diesel generators during natural disasters, Ferrari said.
“ORNL deploying this kind of controller system is going to be a really powerful tool for the community,” Arellano said. It’s unusual for so many businesses and owners to be linked by a microgrid, she added, and the infrastructure will support adding even more.
On a recent trip to Adjuntas, ORNL researchers met with local business owners to better understand their electricity use patterns. For example, when Ferrari visited the bakery, he learned what times refrigerators must run for the dough to rise properly. He and Ollis sought to identify the most critical electricity loads so they can design a system that focuses scarce power where it’s most needed.
“Hopefully it will help not only to manage the microgrids, but also to protect the critical components like the energy storage unit,” said Massol-Deyá, who is also a professor at University of Puerto Rico Mayaguez (UPRM).

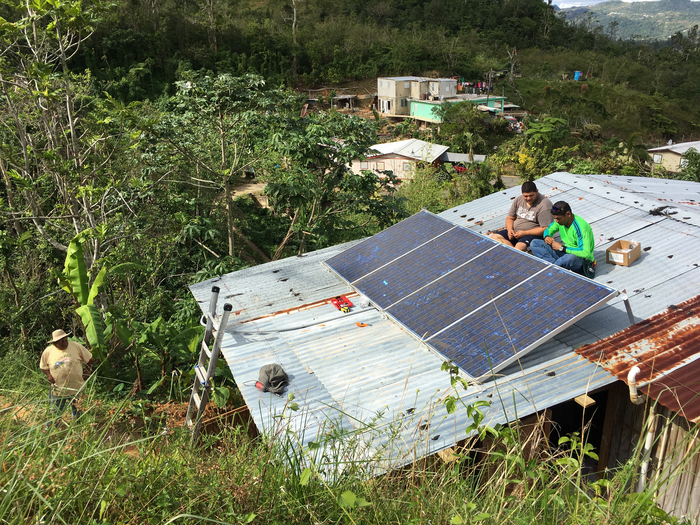

The income produced by the community-owned microgrids will fund their maintenance and expansion, as well as installation of independent solar systems for the most disadvantaged Adjuntas residents, he said.
A sense of urgency
Fabio Andrade is a UPRM engineering professor and a visiting scientist at ORNL collaborating on the Adjuntas project. His students model strategies, tools and algorithms for sharing solar power among microgrid users. UPRM colleague Gerson Beauchamp guides students through analyzing the solar equipment and predicting how much energy it will produce. At current electricity prices, the businesses can collectively expect to save as much as $78,000 a year by buying solar energy from the microgrids, Beauchamp said.
Ferrari is incorporating information from UPRM colleagues into his simulations, which are being tested live with actual microgrid hardware at DOE’s Grid Research Integration and Deployment Center (GRID-C) at ORNL. The next step is running the configuration in the facility’s brand-new networked testbed for microgrids. In another year, the orchestrator will be deployed in Adjuntas.
While the ORNL-derived technology could be a literal lifesaver in Puerto Rico, it also holds broader potential for enabling microgrids to play a key role in the global grid of the future. Intelligent microgrids that incorporate renewable energy are poised to advance grid flexibility and resiliency while supporting vital decarbonization efforts.
“The orchestrator includes a framework of algorithms that can be expanded and deployed to many microgrids at any site,” Ollis said. “They could provide more reliable electricity to many rural communities at the grid edge. I want to see a future where we have hundreds of microgrids working together to protect critical infrastructure at local, regional and national levels.”
ORNL’s work on the Adjuntas project is funded through the DOE’s Solar Energy Technologies Office. Much of the microgrid orchestrator design, configuration and testing is occurring in the microgrid testbed called COMMANDER (Coordination of Multi-Microgrids and Networked Distributed Energy Resources), which is part of the GRID-C facility funded largely by the DOE’s Office of Electricity.
Other members of the ORNL team working on the Adjuntas microgrids project are Guodong Liu, Aditya Sundararajan, Mohammed M. Olama and Yang Chen. Additional academic partners include the University of Central Florida and the University of Tennessee-Knoxville.
