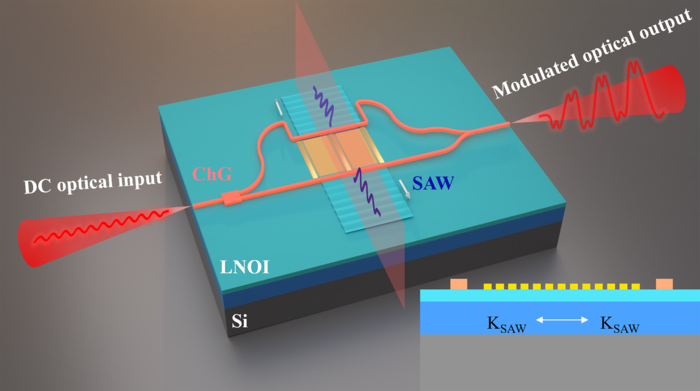

image: Schematic diagram and cross-sectional view of the proposed device. The MZI waveguide is etched on the top of the Ge₂₅Sb₁₀S₆₅ film (orange), which is deposited on the LNOI wafer (light blue). The IDT made of Au electrodes (yellow) is evaporated in the region between the two arms. In principle, the direct current (DC) optical input is modulated into a distorted sinusoidal time-domain signal via a varied SAW. view more
Credit: by Lei Wan, Zhiqiang Yang, Wenfeng Zhou, Meixun Wen, Tianhua Feng, Siqing Zeng, Dong Liu, Huan Li, Jingshun Pan, Ning Zhu, Weiping Liu, and Zhaohui Li
Traditional acousto-optic (AO) devices based on bulk crystal materials have weak energy confinement abilities for both photons and phonons, leading to a low AO interaction strength. Compared with bulk materials, photonic integrated circuits (PICs) allow surface acoustic waves (SAWs) to be well confined within the thin film used to disturb the guided light waves, exhibiting a high energy overlap within the wavelength scale. In particular, as one of the most promising AO interaction platforms, thin-film lithium niobate (TFLN) provides great potential for the realization of high-performance AO modulators due to its superior advantages in piezoelectric transduction and electro-optical conversion. However, limited by the low optomechanical coupling coefficients, weak AO modulation efficiencies have become one of the bottlenecks for microwave-to-optical conversion in 5G/6G and emerging quantum signal processing applications.
In a new paper published in Light Science & Application, a team of scientists, led by Professor Zhaohui Li from Guangdong Provincial Key Laboratory of Optoelectronic Information Processing Chips and Systems, Sun Yat-sen University, China, Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai), China, and co-workers Dr. Lei Wan, Dr. Zhiqiang Yang, et al have proposed and demonstrated a built-in push-pull acousto-optic modulator with a half-wave-voltage-length product VpL as low as 0.03 V cm, based on a nonsuspended TFLN-chalcogenide glass (ChG) hybrid Mach–Zehnder interferometer waveguide platform. The nontrivial acousto-optic modulator presents a modulation efficiency comparable to that of a state-of-the-art suspended counterpart. Compared to the traditional push-pull AO modulators, the proposed device prototype overcomes the issue of low modulation efficiency induced by the incoordinate energy attenuation of acoustic waves applied to the Mach–Zehnder interferometer with two arms. Combined with the simple fabrication processes and high-performance modulation efficiency, our built-in push-pull AO modulator is expected to show excellent characteristics in on-chip microwave-to-optical conversion devices.
The valuable AO modulation performance benefits from the superior photoelastic property of the chalcogenide membrane and the completely bidirectional participation of the antisymmetric Rayleigh surface acoustic wave mode excited by the impedance-matched interdigital transducer. Herein, the photoelastic coefficients of amorphous Ge25Sb10S65 film are estimated to be p11 » p12 » 0.238. Although the XZ direction may not be the most suitable crystal orientation due to the anisotropic feature of TFLN, reasonably engineering the impedance matching of IDT enables us to realize a 96% conversion efficiency in the microwave-to-acoustic conversion.

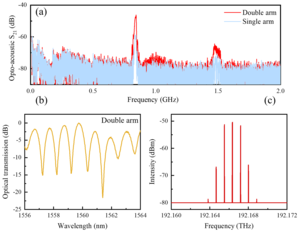

To demonstrate the low power consumption of the device, we construct an on-off modulation link using our nonsuspended built-in push-pull AO modulator. The on-off modulated RF signal is loaded onto the DC optical carrier through our push-pull AO modulator, clearly demonstrating the microwave signal transmission capability of the developed on-chip AO modulator.
“The development of a highly efficient on-chip AO modulator as a key component will offer opportunities for emerging RF-driven on-chip optical isolators and integrated analog optical computing devices.” the scientists forecast.
Journal
Light Science & Applications
