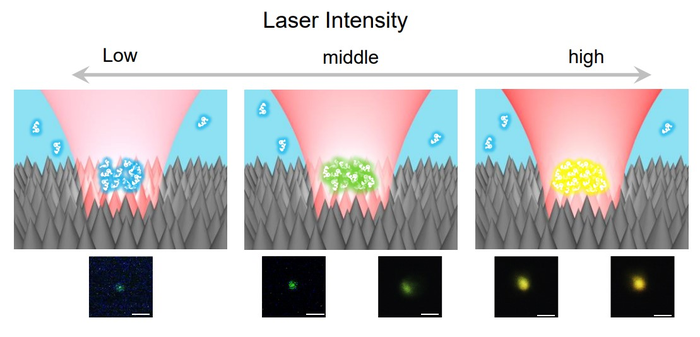

image: We propose a novel approach to fluorescence colour control using optical tweezers. We demonstrate an optical trapping technique using nanotextured Si. By increasing the laser intensity, the local concentration of perylene-labelled polymer chains increased. Accordingly, the excimer fluorescence of perylene increased while the monomer fluorescence decreased, evidenced by a fluorescence colour change from blue to orange. In this way, we succeeded in remote and reversible control of fluorescence colour with variation of blue, green, yellow-green, yellow, and orange colour. view more
Credit: Yasuyuki Tsuboi
One big stumbling block in the field of photonics is that of color control. Until now, to control color, i.e. the wavelength of light emission, researchers would have to alter the chemical structure of the emitter or the concentration of the solvent – all of which require direct contact, greatly limiting their application.
“Such conditions make it impossible to change color quickly, use it as a light source in microscopic spaces like a cell, or in closed systems where exchange is not an option,” says Yasuyuki Tsuboi and professor of the Department of Chemistry, Osaka City University. With “optical tweezers”, a technology he developed in previous research, Prof. Tsuboi led a team of researchers to show it possible to control the luminescence color remotely, using only the effect of light pressure.
Their findings were recently published online in the German international journal Angewandte Chemie Intl.
For years, Professor Tsuboi and his colleagues have been conducting research on a technology that can capture and manipulate nano- and micrometer-sized materials with a laser. In exploring this “optical tweezers” technology, they found that when a silicon crystal with a special needle-shaped nanostructure, called black silicon, was submerged in a sample solution, the optical field enhancement effect of the nanostructure trapped a perylene-modified polymer, causing a local concentration of the solution to increase and form an aggregate of polymers.
“When the concentration of the perylene increases, it forms a dimeric excited complex called an excimer,” explains lead author Ryota Takao. These excimers emit fluorescence that changes color depending on the degree of concentration.
This is what the research team investigated in prior trapping experiments that did not employ a trapping laser. Here they found that as the laser beam intensity increased, light pressure did as well, which caused the concentration of the polymer aggregate on the black silicon to become denser – and vice versa.
“We observed the color of the fluorescence emitted by the polymer aggregate change in response to this,” explains Prof, Tsuboi, “with low intensities producing blue, and then changing to green, yellow, green yellow, to orange as the intensity increases.” As the laser intensity is what is being controlled, the color change is fully reversible and able to be done remotely.
While the research is still in its infancy, it relies on excited complexes and excitation energy transfer, which means potential applications in ultraviolet and near-infrared regions, in addition to the visible realm. The research team is currently promoting further research in the direction of encapsulating the perylene-modified polymer solution to be used as a light source in micromachine components and intracellular bioimaging.
###
We are Osaka City University - the oldest research university in Osaka. With 9 undergraduate faculties and 11 graduate schools all dedicated to making urban life better, energy cleaner, and people healthier and happier, we have won numerous awards and have produced 2 Nobel laureates. For more information, please visit our website at https://www.upc-osaka.ac.jp/new-univ/en-research/
Journal
Angewandte Chemie
Method of Research
Imaging analysis
Subject of Research
Not applicable
Article Title
Fluorescence Colour Control in Perylene-Labeled Polymer Chains Trapped by Nanotextured Silicon
Article Publication Date
13-Jan-2022
COI Statement
The authors declare no conflict of interest.
