Non-linear effects in coupled optical microcavities

Scientists from the Faculty of Physics of the University of Warsaw demonstrated exciton-polariton lasing and parametric scattering of exciton-polaritons in a system of coupled optical microcavities. The results have been published in the prestigious journal "Nanophotonics".

Exciton-polaritons are quasiparticles formed by a strong coupling between excitons and photons in a semiconductor. Their bosonic nature and non-linear interactions allow the observation of fascinating phenomena such as Bose-Einstein condensation of polaritons and polariton lasing, which, unlike typical lasering, occurs without occupation inversion.


Coupled microcavity systems, such as those based on two coupled optical microcavities, offer a promising multi-level platform for basic research and practical applications. The unique structure consisting of several dozen of layers with the precisely defined thickness (each with an accuracy of a few nanometers) was fabricated in the MBE laboratory at the Faculty of Physics, University of Warsaw.

In the presented work, we study non-linear effects in a system of two coupled optical microcavities. Bose-Einstein condensation of polaritons and polariton lasing occur at the two lowest energy levels of an overall four-level system. This is a surprising result in the context of what has previously been observed in single microcavities, where condensation took place in the system's ground state. Emission dynamics measurements have shown that in the present case the condensates of different energies share the same lasing threshold, but do not appear simultaneously, i.e. they form and disappear subsequently, one by one. Moreover, the transition to the condensate state is accompanied by an energy-degenerate parametric scattering of polaritons, i.e. the one in which the state of the crystal is preserved before and after the scattering process - explains Krzysztof Sawicki. In previous studies on coupled microcavities, parametric scattering was obtained using strictly resonant excitation. The non-resonant excitation used in the present work enables spectral separation of the signal from the excitation laser, which is a promising result from the point of view of implementing sources of entangled photons based on polaritons.

Previously, a coupled microcavity system was used to demonstrate energy transfer over 2 micrometers, mediated by polariton states. This is a record distance taking into account the typical nanometer scale of interaction between excitons in a semiconductor. We expect our results to open the way to the research on new types of non-linear effects in multi-level polariton systems. Our work is essential for such rapidly developing fields as, for example, all-optical quantum computing, since the non-linear interactions in a multi-level system may enable the implementation of logic systems based on polaritons – adds Jan Suffczynski.

For more information, please contact with Krzysztof Sawicki or Jan Suffczynski from the Laboratory of Ultrafast MagnetoSpectoscopy (LUMS).

Physics and astronomy at the University of Warsaw appeared in 1816 as part of the then Faculty of Philosophy. In 1825, the Astronomical Observatory was established. Currently, the Faculty of Physics at the University of Warsaw consists of the following institutes: Experimental Physics, Theoretical Physics, Geophysics, the Department of Mathematical Methods and the Astronomical Observatory. The research covers almost all areas of modern physics, on scales from quantum to cosmological. The Faculty's research and teaching staff consist of over 200 academic teachers, 81 of whom are professors. About 1,000 students and over 170 doctoral students study at the Faculty of Physics at the University of Warsaw.

SCIENTIFIC PAPERS:

K. Sawicki, T. J. Sturges, M. Sciesiek, T. Kazimierczuk, K. Sobczak, A. Golnik, W. Pacuski, J. Suffczynski, Polariton lasing and energy-degenerate parametric scattering in non-resonantly driven coupled planar microcavities, Nanophotonics 10(9), 2421-2429 (2021).

https://doi.org/10.1515/nanoph-2021-0079

CONTACTS:

Krzysztof Sawicki
Faculty of Physics University of Warsaw
email: Krzysztof.Sawicki@fuw.edu.pl

Jan Suffczyński
Faculty of Physics University of Warsaw
email: Jan.Suffczynski@fuw.edu.pl

tel. +48 225532707

RELATED WEBSITES WWW:

http://LUMNP.fuw.edu.pl
Website of the LUMS group

http://fuw.edu.pl/~ksawicki
Krzysztof Sawicki’s website

http://fuw.edu.pl/~jass
Jan Suffczyński’s website

https://www.fuw.edu.pl/faculty-of-physics-home.html

Website of the Faculty of Physics University of Warsaw

https://www.fuw.edu.pl/press-releases.html

Press service of the Faculty of Physics at the University of Warsaw

TWITTER:

https://twitter.com/lumsatuw

https://twitter.com/ksawickii

https://twitter.com/MBEatUW

GRAPHIC MATERIALS:

FUW210728b_fot01

https://www.fuw.edu.pl/tl_files/press/images/2021/FUW210728b_fot01.png

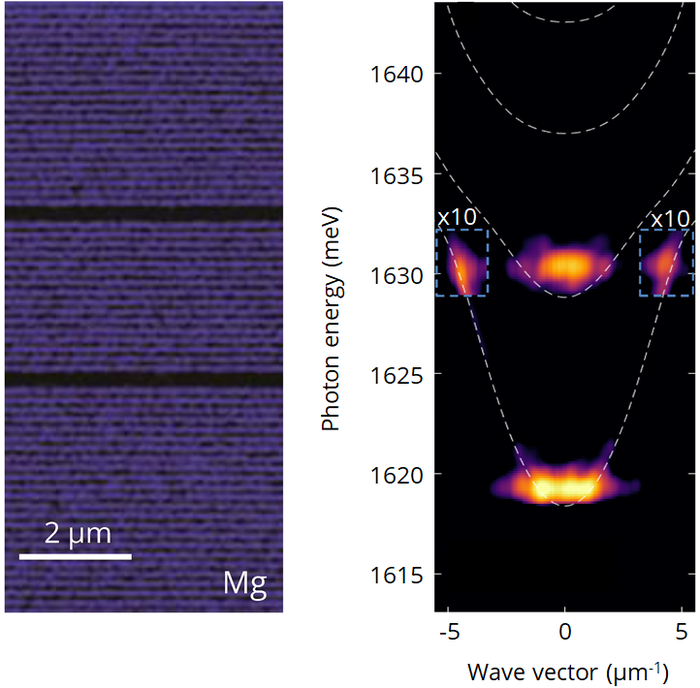

On the left: a spatial cross-section of the studied structure. Two optical microcavities (broad black stripes) are visible, surrounded by a multilayer Bragg mirrors. The image shows the spatial distribution of magnesium. It was obtained in a transmission electron microscope in the measurement of energy dispersion X-ray spectroscopy. On the right: angularly resolved emission spectrum of a system of two coupled optical microcavities recorded for excitation power above the polariton lasing threshold. The white lines represent the calculated polariton levels. Parametric polariton scattering is visible as bright points inside the blue rectangles. (Source: K. Sobczak, CNBCh UW, K. Sawicki, Faculty of Physics UW)
