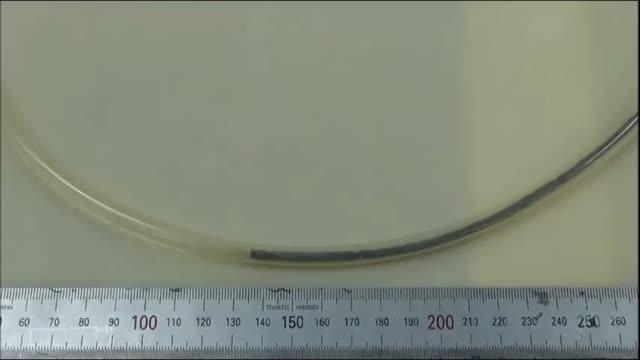

video: Insertion experiment with a self-propelled catheter. view more
Credit: Hideyuki Tsukagoshi
Biopsies of pulmonary lesions are essential for increasing the accuracy of diagnosis and treatment for respiratory illnesses such as lung cancer. Currently, manual biopsies are performed via bronchoscopy. However, the bronchi tends to branch thinner and more complicatedly as it goes to the periphery, which makes it a challenge to reliably choose one and fine-tune the propelling movement. Given the skill disparities in operating doctors as well, it is difficult to reliably reach the lesion with the biopsy forceps, resulting in inadequate diagnosis accuracy.
The development of instruments and mechanisms that can reliably reach the target in the lungs is required for adequately testing with an endoscope, but the looming challenge was finding a mechanism to reliably advance the biopsy forceps to the target even inside the ultrafine and widely branching bronchi.
Now, Prof. Yuichiro Takai of Department of Respiratory Medicine, Omori Medical Center at Toho University and Prof. Hideyuki Tsukagoshi, of Department of System and Control Engineering at Tokyo Tech collaborate in developing the new self-propelled catheter designed to generate travelling waves in multiple chambers just by adding and reducing pressure inside one tube. This allowed for moving forward with peristaltic motion within an ultrafine structure such as a bronchus. This catheter also has an actively curving function for choosing the direction of propulsion, and a flexing drive function for adjusting to changes in line diameter. Their effectiveness was verified using a bronchus model.
The goal is to increase the accuracy of branches which can be propelled, include a camera to collect information on the inside of the bronchi, develop functions applicable to biopsies and treatment, and put instruments to practical use.
###
Reference
Koichi Terashima(1), Hideyuki Tsukagoshi(1*), Yujiro Takai(2*), A self-propelling catheter capable of generating traveling waves by a mono-line drive, Proceedings of the 2017 JSME Conference on Robotics and Mechatronics(No.17-2)
(1) Tokyo Institute of Technology
(2) Toho University
