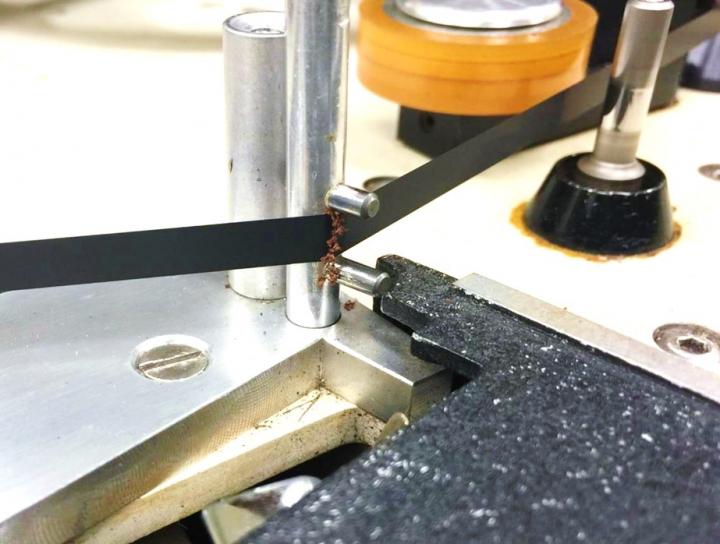

image: A brown “sticky shed” residue on an unplayable reel-to-reel tape is shown accumulating at a playback machine’s contact points; the residue disappears upon heating. view more
Credit: Andrew R. Davis
WASHINGTON, April 8, 2020 — Crooner Bing Crosby knew a thing or two about sound. In 1947, recognizing that recorded music sounded better on magnetic reel-to-reel tape than on vinyl records, he invested in a company to develop equipment to record his radio shows. Soon, reel-to-reel tapes and recording and playback machines were a household craze. Now, as reel-to-reel tapes make a comeback among audio buffs, scientists are unraveling the secret of why some decades-old tapes are unplayable, while others retain their original superb audio fidelity.
The researchers are presenting their results through the American Chemical Society (ACS) SciMeetings online platform.
“It is a mystery why some tapes hold up and others don’t,” says Andrew R. Davis, Ph.D. “I talked to audio technicians to ask what they do to remedy unplayable tapes. They knew that heating degraded tapes worked, and they used everything from toaster ovens to hair dryers. But no one knew exactly why heat worked, and sometimes the tapes reverted quickly to being unplayable. We are trying to find out why.”
The project is of special interest to Davis, a polymer chemist at the Library of Congress (LC), which has nearly 200,000 reels of audio tapes spanning recordings of popular musicians, National Public Radio (NPR) broadcast archives and the American Folklife Center. The collections are used by scholars and documentary producers around the world. Universities, private citizens and museums also have aging reel-to-reel tapes, and Davis emphasizes that his work could help them preserve recordings in their collections, as well.
Reel-to-reel tapes are generally comprised of a multilayer polyester-urethane polymer containing various additives and lubricants. Tapes that degrade often have “sticky-shed syndrome,” which is created by the deterioration of binders in a magnetic tape that hold the iron oxide magnetizable coating to its plastic carrier or that hold the thinner back-coating on the outside of the tape. Sticky-shed syndrome leaves a residue that can damage the tape and playback equipment.
The sweet spot for thermal treatment of tapes appears to be around 130 F, Davis says. In his studies, Davis used sample tapes from LC’s analytical lab that are representative of the library’s valuable collections. On most of the tapes he studied, he observed that residues on the surface of the binder layer were crystalline and polyester-like. He also found that these residues melted back into the bulk polymer layer upon heating, turning an unplayable tape into a playable one. It turns out that the crystals re-appear, or bloom, on the tape surface when they become unplayable again. His studies of thermal transitions in the magnetic layer and polyethylene terephthalate support film indicate that a single component does not account for tape degradation and that the detrimental residues are not isolated to the tape binder layer.
“This research also confirmed what we heard from audio technicians, that thermally treated tapes that were wound on reels reverted to a visibly deteriorated condition within a few weeks,” Davis says. “Surprisingly, we found that when our small unwound test samples of tape were thermally treated, they appeared to be optically fine even after weeks. Clearly being wound has some effect on the tapes.”
“One explanation is that when you bake and melt the tape residues, they transfer to the backside of the adjacent, nonmagnetic layer of tape. As it cools down, it retransfers to the oxide layer if the tape is tightly wound,” Davis says. “Or perhaps the pressure of winding the reel has something to do with the melting and recrystallization process.” Davis and his colleagues are studying those possibilities now.
Despite the ongoing mystery, Davis has advice for people who love their stashes of reel-to-reel tapes and want to know how to store or restore their old tapes. “The best bet is to buy a good technical oven to control the temperature of restoration and good playback equipment, rather than highly specific environmental controls,” he says. “You probably wouldn’t want to store your tapes in a sauna, but normal seasonal changes in temperature and humidity seem to bode well for tape storage.”
###
The researchers acknowledge support and funding from the Library of Congress.
The American Chemical Society (ACS) is a nonprofit organization chartered by the U.S. Congress. ACS’ mission is to advance the broader chemistry enterprise and its practitioners for the benefit of Earth and its people. The Society is a global leader in providing access to chemistry-related information and research through its multiple research solutions, peer-reviewed journals, scientific conferences, eBooks and weekly news periodical Chemical & Engineering News. ACS journals are among the most cited, most trusted and most read within the scientific literature; however, ACS itself does not conduct chemical research. As a specialist in scientific information solutions (including SciFinder® and STN®), its CAS division powers global research, discovery and innovation. ACS’ main offices are in Washington, D.C., and Columbus, Ohio.
To automatically receive press releases from the American Chemical Society, contact newsroom@acs.org.
Title
Towards understanding the thermal remediation of degraded archival reel-to-reel audio tapes
Abstract
The Library of Congress holds nearly 200,000 reels of audio tape, spanning recordings of popular musicians, the American Folklife Center, and NPR broadcast archives. These tapes are generally comprised of a multilayer polyester-urethane material containing various additives and lubricants, and over the past few decades, many archival tapes have been observed to show signs of surface degradation resulting in unplayability. The most common treatment for an unplayable audio tape is a thermal remediation “baking” treatment where the tape is exposed to temperatures near 50 °C for multiple hours. While this thermal treatment usually succeeds in allowing for clean playback of the degraded tapes, the mechanisms underlying the thermal treatment have remained unclear.
The Library’s Preservation Research and Testing Division has used modulated differential scanning calorimetry, heat-stage microscopy, and artificial aging to study the thermal transitions which occur during remedial tape baking. In most cases of tape degradation, crystalline polyester-like residues were observed on the surface of the tapes’ polymeric binder layer, and these residues were observed to melt back into the bulk polymer binder. However, as noted by seasoned audio technicians and archivists, thermal baking treatments are not permanent. Baked tapes are known to slowly revert back to unplayable condition. Additional time-based experiments identified phase separation in these treated tapes over time, with melted residues eventually blooming and re-appearing at the tape surface. Thermal transitions were also identified in both the magnetic layer and the PET support film, indicating that one single component cannot be attributed for tape breakdown and that the detrimental residues were not isolated to the tape binder layer.
Learnings from these lab-scale experiments, undertaken on small samples of audio tape, are now being used on full-sized audio tape reels to understand how these thermal processed may proceed in tightly-wound real-world tapes to better inform preservation processes.
