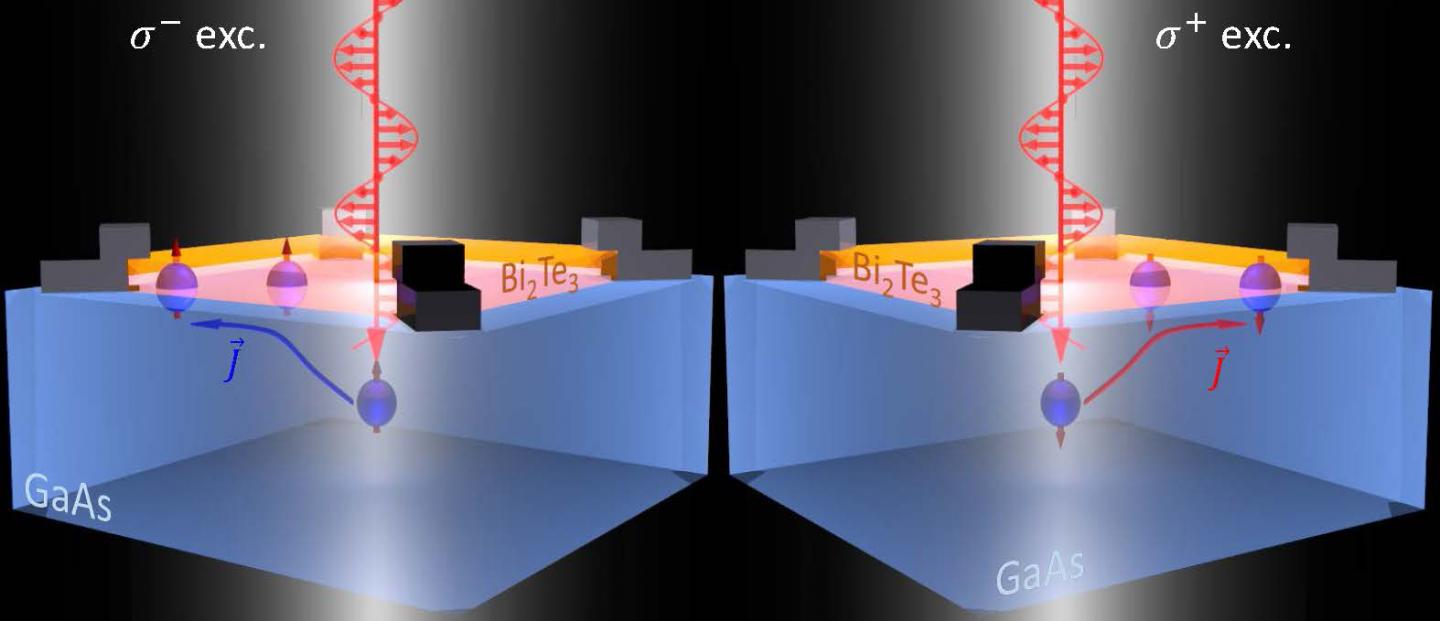

image: The researchers have taken the first step towards transferring spin-oriented electrons between a topological insulator (orange layer) and a conventional semiconductor (blue layer). view more
Credit: Weimin Chen
A discovery of how to control and transfer spinning electrons paves the way for novel hybrid devices that could outperform existing semiconductor electronics. In a study published in Nature Communications, researchers at Linkoping University in Sweden demonstrate how to combine a commonly used semiconductor with a topological insulator, a recently discovered state of matter with unique electrical properties.
Just as the Earth spins around its own axis, so does an electron, in a clockwise or counter-clockwise direction. "Spintronics" is the name used to describe technologies that exploit both the spin and the charge of the electron. Current applications are limited, and the technology is mainly used in computer hard drives. Spintronics promises great advantages over conventional electronics, including lower power consumption and higher speed.
In terms of electrical conduction, natural materials are classified into three categories: conductors, semiconductors and insulators. Researchers have recently discovered an exotic phase of matter known as "topological insulators", which is an insulator inside, but a conductor on the surface. One of the most striking properties of topological insulators is that an electron must travel in a specific direction along the surface of the material, determined by its spin direction. This property is known as "spin-momentum locking".
"The surface of a topological insulator is like a well-organised divided highway for electrons, where electrons having one spin direction travel in one direction, while electrons with the opposite spin direction travel in the opposite direction. They can travel fast in their designated directions without colliding and without losing energy," says Yuqing Huang, Ph D student at the Department of Physics, Chemistry and Biology (IFM) at Linkoping University.
These properties make topological insulators promising for spintronic applications. However, one key question is how to generate and manipulate the surface spin current in topological insulators.
The research team behind the current study has now taken the first step towards transferring spin-oriented electrons between a topological insulator and a conventional semiconductor. They generated electrons with the same spin in gallium arsenide, GaAs, a semiconductor commonly used in electronics. To achieve this, they used circularly polarised light, in which the electric field rotates either clockwise or counter-clockwise when seen in the direction of travel of the light. The spin-polarised electrons could then be transferred from GaAs to a topological insulator, to generate a directional electric current on the surface. The researchers could control the orientation of spin of the electrons, and the direction and the strength of the electric current in the topological insulator bismuth telluride, Bi2Te3. This flexibility has according to the researchers not been available before. All of this was accomplished without applying an external electric voltage, demonstrating the potential of efficient conversion from light energy to electricity. The findings are significant for the design of novel spintronic devices that exploit the interaction of matter with light, a technology known as "opto-spintronics".
"We combine the superior optical properties of GaAs with the unique electrical properties of a topological insulator. This has given us new ideas for designing opto-spintronic devices that can be used for efficient and robust information storage, exchange, processing and read-out in future information technology," says Professor Weimin Chen, who has led the study.
###
The research was performed in collaboration with scientists from the Chinese Academy of Sciences in Shanghai. It was financed with support from, among others, the Swedish Research Council, the Swedish Government Strategic Research Area in Materials Science on Functional Materials at Linkoping University, the Swedish Foundation for Strategic Research, the Key Program of Natural Science Foundation of China and the Natural Science Foundation of China.
Article: Spin injection and helicity control of surface spin photocurrent in a three dimensional topological insulator, Y.Q. Huang, Y.X. Song, S.M. Wang, I.A. Buyanova, W.M. Chen, Nature Communications, 8, published online 22 May 2017, doi: 10.1038/ncomms15401
For further questions, please contact:
Weimin Chen, professor, weimin.chen@liu.se, + 46 13-281795 or +46 70 512 1388
Karin Soderlund Leifler, press officer, karin.soderlund.leifler@liu.se, +46 13 281395
Journal
Nature Communications
