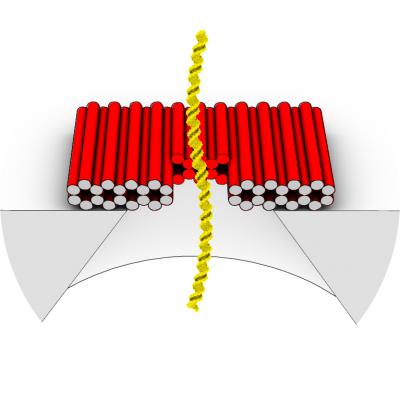

image: This illustration shows how a DNA origami nanoplate with a central aperture can serve as a smart lid or "gatekeeper" for a solid-state nanopore sensor. Researchers at the Technische Universitaet Muenchen have demonstrated that this arrangement can be used to filter biomolecules by size or to "fish" for specific target molecules by placing single-strand DNA receptors inside the aperture as "bait." With further research, they suggest, it might be possible to use such single-molecule sensors as the basis of a novel DNA sequencing system. view more
Credit: TU Muenchen
The latest advance in solid-state nanopore sensors – devices that are made with standard tools of the semiconductor industry yet can offer single-molecule sensitivity for label-free protein screening – expands their bag of tricks through bionanotechnology. Researchers at the Technische Universitaet Muenchen have enhanced the capabilities of solid-state nanopores by fitting them with cover plates made of DNA. These nanoscale cover plates, with central apertures tailored to various "gatekeeper" functions, are formed by so-called DNA origami – the art of programming strands of DNA to fold into custom-designed structures with specified chemical properties. The results are published in Angewandte Chemie International Edition.
Over the past few years, Prof. Hendrik Dietz's research group at TUM has been refining control over DNA origami techniques and demonstrating how structures made in this way can enable scientific investigations in diverse fields. Meanwhile, Dr. Ulrich Rant's research group has been doing the same for solid-state nanopore sensors, where the basic working principle is to urge biomolecules of interest, one at a time, through a nanometer-scale hole in a thin slab of semiconductor material. When biomolecules pass through or linger in such a sensor, minute changes in electrical current flowing through the nanopore translate into information about their identity and physical properties. Now Dietz and Rant, who are both Fellows of the TUM Institute for Advanced Study, have begun to explore what these two technologies can accomplish together.
The new device concept – purely hypothetical before this series of experiments – begins with the placement of a DNA origami "nanoplate" over the narrow end of a conically tapered solid-state nanopore. "Tuning" the size of the central aperture in the DNA nanoplate should allow filtering of molecules by size. A further refinement, placing single-stranded DNA receptors in the aperture as "bait," should allow sequence-specific detection of "prey" molecules. Conceivable applications include biomolecular interaction screens and detection of DNA sequences. In principle, such a device could even serve as the basis of a novel DNA sequencing system.
Step by step, the researchers investigated each of these ideas. They were able to confirm the self-assembly of custom-designed DNA origami nanoplates, and then their placement – after being electrically guided into position – over solid-state nanopores. They were able to demonstrate both size-based filtering of biomolecules and bait/prey detection of specific target molecules. "We're especially excited about the selective potential of the bait/prey approach to single-molecule sensing," Dietz says, "because many different chemical components beyond DNA could be attached to the appropriate site on a DNA nanoplate."
High-resolution sensing applications such as DNA sequencing will face some additional hurdles, however, as Rant explains: "By design, the nanopores and their DNA origami gatekeepers allow small ions to pass through. For some conceivable applications, that becomes an unwanted leakage current that would have to be reduced, along with the magnitude of current fluctuations."
This research was supported by the German Excellence Initiative through the TUM Institute for Advanced Study, the Nano Initiative Munich, and the Center for Integrated Protein Science Munich; by the Collaborative Research Center SFB 863 of the German Research Foundation (DFG); and by a European Research Council Starting Grant to Hendrik Dietz. Ruoshan Wei was supported by the TUM Graduate School's Faculty Graduate Center of Physics.
Original publication:
DNA Origami Gatekeepers for Solid-State Nanopores
Ruoshan Wei, Thomas G. Martin, Ulrich Rant, and Hendrik Dietz
Angewandte Chemie International Edition on-line, April 4, 2012.
DOI: 10.1002/anie.201200688
