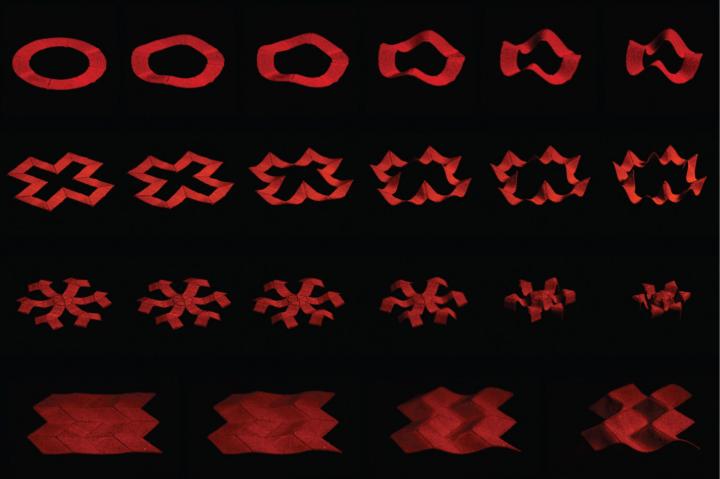

image: This is a time-lapse photo for various designs of developed magnetic active material. view more
Credit: MIT Soft Active Materials Lab
ADELPHI, MD. - New 3-D printed robotic structures can squeeze in tight spaces like a crack in the wall of a cave, jump over trip wire or crawl under a vehicle - all complex Army-relevant functions impossible for humans to perform safely.
Investigators at the Army's Institute for Soldier Nanotechnologies (ISN), located at MIT, have developed a 3-D printing platform that can enable both the modeling and design of complex magnetically actuated devices. The new approach utilizes a 3-D printing platform fitted with an electromagnet nozzle and a new type of 3-D printable ink infused with magnetic particles. Their findings could lead to new biomedical applications, magnetic ink optimized to strengthen soft robotic functionality, and new on-demand flexible material systems for integration into Soldier systems.
Soft robotic capabilities and manufacturing at the point of need are among the Army's top research priorities.
This research is managed through the U.S. Army Research Laboratory's Army Research Office by Dr Aura Gimm.
"This research provided new insight on ways to cause fast changes in 3-dimensional shapes of parts such as robot's limbs. The MIT group demonstrated this success using auxetic metamaterials - synthetic composite materials that have an unusual internal structure and the unusual property that when exposed to external magnetic actuation, they shrank in both longitudinal and transverse directions. This is different from typical auxetic materials that do require direct mechanical contact, and when compressed they undergo contraction in the directions perpendicular to the applied force (this is called the negative Poisson's ratio). On the contrary, common materials expand in the directions orthogonal to compressive load. In one example from this research, through remote magnetic control, they caused a metamaterial structure to jump forward 120 mm within 0.7 s, which is very fast for the current state of the art. This jump was due to a rapid release of elastic and magnetic potential energy stored in that structure. Such complex shape-morphing structures could have great potential for the Army, because they may help create soft robots - robots with pliable limbs similar to natural organisms. Compared to the current generation of rigid robots, soft robots could move much more dexterously on a complex battlefield terrain," said Army Research Laboratory Dr. Alex Hsieh.
This technology may enable the future Army to fabricate magnetic 3-D printed structures that can crawl, roll, jump or grab in support of Army relevant needs. This research effort enables controlling the magnetic orientation of newly 3-D printed devices so that they are able to rapidly change into new intricate formations or move about as various sections respond to an external magnetic field. Functions demonstrated from these complex shape changes include reconfigurable soft electronics, mechanical metamaterial that can jump and a soft robot that can crawl, roll, catch fast moving objects or deliver pharmaceuticals.
Although other groups have fabricated magnetically activated materials to accomplish simple movements, this new approach enables both the modeling and the design of magnetically controlled device sections to perform complex Army relevant soft robotic tasks.
The approach is based on direct ink writing of an elastomer composite containing ferromagnetic microparticles and the application of a magnetic field to the dispensing nozzle while printing. The technique reorients particles along the applied field to impart patterned magnetic polarity to printed filaments. This method allows the researchers to program ferromagnetic domains in complex 3-D-printed soft materials to enable a set of previously inaccessible modes of transformation. The actuation speed and power density of the printed soft materials with programmed ferromagnetic domains are orders of magnitude greater than existing 3-D-printed active materials.
"We have developed a printing platform and a predictive model for others to use. People can design their own structure and domain patterns, validate them with the model, and print them to actuate various functions. By programming complex information of structure, domain, and magnetic field, one can even print intelligent machine such as robots," said MIT Professor Xuanhe Zhao, an investigator at the Army's ISN.
This work aligns with Army modernization priorities that support future Army operations through support of ARL's extramural basic research campaign and the Army's Robotic and Autonomous Systems Strategy.
