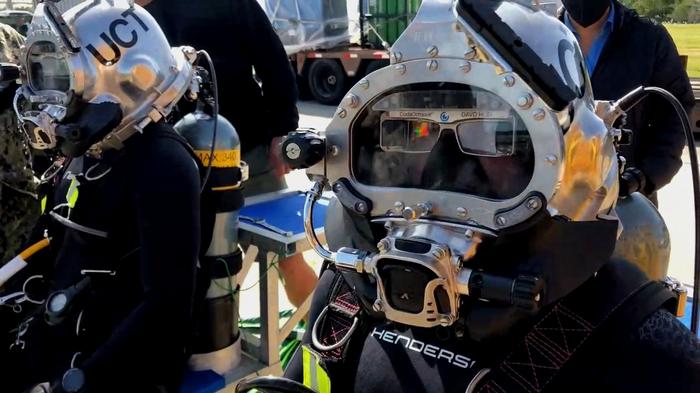

image: U.S. Navy divers test the Divers Augmented Vision Display (DAVD) during a training exercise in Little Creek, Virginia. Outfitted with components such as a heads-up display resembling virtual-reality glasses (which can be adapted to any Navy dive helmet), DAVD enables divers to better operate in inhospitable underwater environments.
Credit: Photo courtesy of Coda Octopus
ARLINGTON, Va.—A favorite childhood memory for Dr. Sandra Chapman was visiting the USS Arizona Memorial in Pearl Harbor with her father. They hung out at the memorial so often that they memorized lines to the movie playing prior to the boat ride to the memorial.
So it’s appropriate that Chapman — a program officer in the Office of Naval Research’s (ONR) Warfighter Performance Department — is passionate about her involvement in the development of an innovative technology recently applied to efforts to preserve the area around the USS Arizona Memorial.
Developed in partnership with Naval Sea Systems Command (NAVSEA) and Coda Octopus, the system is the Divers Augmented Vision Display (DAVD), which enables divers to better operate in inhospitable underwater environments.
“Through real-time information sharing, high-resolution imagery and an augmented-reality display, DAVD allows Navy divers to operate more effectively in dark, low-visibility environments,” said Chapman. “This increases their productivity, improves communications, keeps them safe and turns on the lights underwater, so to speak.”
Navy diving missions include deep ocean salvage of vessels and aircraft, underwater rescues, explosive ordnance disposal, ship hull maintenance and recovery of sunken equipment. This often involves working in pitch-black, dangerous conditions littered with hazards such as pier pilings, rock and jagged metal.
Designed to address these challenges, DAVD’s most prominent feature is a heads-up display resembling virtual-reality glasses, which can be adapted to any Navy dive helmet. Other components include specialized augmented-reality software (which allows the Coda Octopus 3D sonar or virtual images to be overlaid on a physical landscape), laptops, cables, cameras and lighting.
While using DAVD, a diver is tethered to a ship or floating platform by cables transmitting vital information between the diver and surface team — including rate of ascent and descent, time elapsed, current and maximum depth, and remaining levels of breathing gas.
DAVD can take sonar imagery gathered before and during a dive and use it to create a detailed 3D model of the dive site. In addition, divers are able to receive videos, technical manuals, images, messages and other data to help them navigate underwater and maintain smooth communications with the surface.
“As a diver, I’ll say DAVD is a game-changer,” said Lt. Matthew Coleman, a NAVSEA assistant for salvage. “It gives us an extremely detailed view of the bottom — with much more accuracy than what we used previously — and is an excellent tool for completing any mission, in all working conditions.”
DAVD’s roots stretch back to 2019, when ONR sponsored its development to answer a need voiced by NAVSEA to improve diver visibility underwater. It eventually was moved to ONR’s Future Naval Capabilities program, which is designed to complete development of mature technologies and transition them into naval programs of record.
In the subsequent years, multiple versions of DAVD were introduced into the fleet for testing, demonstration and transition, each with new improvements and upgrades. The latest iteration entered service in 2023.
Approximately 15 DAVD systems are currently being used by nine naval commands — and have played important roles in both naval and non-naval operations. For example, in the aftermath of the 2023 wildfires in Maui, Hawaii, Navy divers used DAVD to locate 26 boats that had sunk along a marina during the disaster.
Navy and Coda Octopus engineers also employed the DAVD 3D sonar systems to assist in salvage efforts after the March 2024 collapse of Baltimore’s Francis Scott Key Bridge. And DAVD was instrumental in efforts to map the murky waters surrounding the sunken USS Arizona. The purpose was to help U.S. Pacific Fleet and the National Park Service inspect the condition of submerged, severely degraded construction moorings used to build the memorial in the 1950s.
In the future, Chapman and McMurtrie envision potential upgrades to DAVD that could include GPS for georeferencing (relating a digital map or image to geographic coordinates), physiological monitoring such as an eye-tracking device, or enabling DAVD to work without cables connecting to the surface.
“As we get regular feedback from divers, we want to continuously upgrade and improve DAVD to ensure it stays effective and relevant,” said Paul McMurtrie, NAVSEA diving systems program manager. “Similar to how your iPhone is always getting upgrades.”
