Ti3AlC2−yNy carbonitride MAX phase solid solutions with tunable mechanical, thermal and electrical properties

Peer-Reviewed Publication

Tsinghua University Press

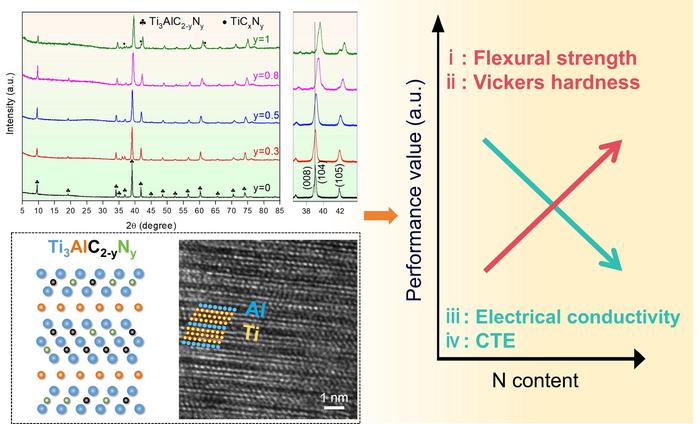

Characterization and performance of Ti3AlC2−yNy solid solutions

image:

XRD results showed the composition of Ti3AlC2−yNy solid solutions. The (104) diffraction peak of the prepared samples shifted towards higher angles as the y value increased, suggesting that the replacement of C by N induces the lattice distortion. The crystal structure depicted the random distribution of N atoms on X sites. Three Ti and one Al layers are alternately stacked, as observed in HRTEM. Both the flexural strength and Vickers hardness values of Ti3AlC2-yNy increased, while the electrical conductivities and CTEs decreased as the y value increased.

view more

Credit: Journal of Advanced Ceramics, Tsinghua University Press

Ti3AlC2 as a representative MAX phase not only has a unique nano-layered crystal structure, but also possesses a combination of attractive properties of metals and ceramics. To further improve its properties, solid solution design as an effective strategy has been generally adopted.

Previous studies have confirmed that substituting C with N to form X-site MAX solid solution, such as Ti2AlC1−yNy, can achieve solid solution strengthening and property modulation. Therefore, it is reasonable to believe that Ti3AlC2−yNy solid solutions with varying N contents can possess desirable and tunable properties. However, such properties have not been confirmed by experimental results, which may be due to the difficulties in synthesizing dense Ti3AlC2−yNy solid solutions with high-purity. For instance, the formation region of Ti3AlCN in the Ti-Al-C-N quaternary phase diagram is relatively narrow and often accompanied by intermediate phases such as TiN, TiC, Ti2AlN, and Ti2AlC. In addition, theoretical work indicated that the stability of Ti3AlC2−yNy decreased as more C atoms were replaced by N atoms.

Recently, the team led by Professor Shibo Li from Beijing Jiaotong University reported on the preparation and properties of Ti3AlC2-yNy MAX solid solutions for the first time. By optimizing the hot pressing conditions, they successfully synthesized a series of dense Ti3AlC2−yNy (y = 0.3, 0.5, 0.8, and 1.0) samples and investigated their composition, mechanical, thermal, and electrical properties. This work demonstrates the tunable properties of Ti3AlC2−yNy solid solutions with varying N contents, and broadens the fundamental research and applications of MAX phase materials.

The team published their work in Journal of Advanced Ceramics on September 25, 2024.

“In this work, we successfully synthesized Ti3AlC2-yNy (y = 0.3, 0.5, 0.8, and 1.0) dense solid solutions by hot-pressing of Ti, AlN, Al, and C powder mixtures under optimized conditions. Rietveld refinement of XRD data indicated that the high purity of the prepared Ti3AlC2−yNy was approximately 97% to 98%. ” said Shibo Li, professor at Beijing Jiaotong University (China), a senior expert whose research interests focus on MAX and MAB phases, and 2D MXenes and MBenes.

“The replacement of C by N in Ti3AlC2−yNy leads to a continuous decrease in a- and c-lattice parameters (a- and c-LPs). Lattice parameters have a significant impact on the physical properties of materials. Therefore, the continuous changes in a- and c-LPs inevitably affect the properties of Ti3AlC2−yNy, such as theoretical density, thermal expansion, and electrical conductivity.” said Shibo Li.

The three-point bending test demonstrated that the flexural strengths of the solid solution samples are relatively higher than that of Ti3AlC2 (360 MPa). The flexural strength significantly increased from 424 to 550 MPa as y increased from 0.3 to 1.0. The measured Vickers hardness values increased from 3.3 to 5.54 GPa as y changed from 0 to 1.0. “Lattice distortion retards the movement of dislocations during the plastic deformation of Ti3AlC2-yNy under compressive stresses and thus improves their mechanical properties. Solid solution strengthening is the main mechanism for improving the mechanical properties of Ti3AlC2-yNy materials.” said Weiwei Zhang.

The thermal expansion test demonstrated that the coefficients of thermal expansion (CTEs) of Ti3AlC2−yNy increased with increasing temperature in the temperature range of 25–900 °C. The average CTEs of Ti3AlC2−yNy (y = 0, 0.3,0.5, 0.8, and 1.0) were 9.47×10−6, 8.79×10−6, 8.93×10−6, 8.37×10−6, and 7.69×10−6 K−1, respectively. “It is well known that the CTEs of MAX phases are dependent on bonding (including bond lengths and types). Strong bonding or short bond lengths are responsible for the low CTEs.” said Weiwei Zhang.

The electrical conductivities of Ti3AlC2−yNy with different N concentrations were measured at room temperature. The electrical conductivity linearly decreased from 1.48×106 to 0.95×106 S/m as the y value increased from 0 to 1.0. “The electrical conductivity linearly decreases with increasing N concentration, mainly due to the formation of lattice distortion and defects such as vacancies and dislocations induced by the solubility of N in Ti3AlC2−yNy. Lattice distortion alters the motion path of electrons and scatters the transmission of electrons, thus leading to a decrease in the electrical conductivity. In addition, vacancies and dislocations hinder electron transport, thereby reducing the electrical conductivity of materials.” said Guoping Bei.

Ti3AlC2−yNy solid solutions with tunable properties are attractive for future applications. Li and Bei suggested that future work will be performed to study the high-temperature properties of Ti3AlC2−yNy solid solutions and to promote their applications in high-temperature environments.

Other contributors include Weiwei Zhang, Xuejin Zhang, Xiachen Fan from the School of Mechanical, Electronic and Control Engineering at Beijing Jiaotong University in Beijing, China; Shukai Fan, Guoping Bei from the Porcelain Fuchi High Tech Nano Materials Co., Ltd in Suzhou, China.

This work was supported by the Fundamental Research Funds for the Central Universities (Nos. 2023YJS061 and 2023JBZY019).
