Synergistic promotion of dielectric and thermomechanical properties of porous Si3N4 ceramics by a dual-solvent template method

Radomes and wave-transmitting antenna windows are critical structural components in aircraft, protecting radar antennas from external interference while ensuring reliable communication. Currently, the most widely used wave-transmitting materials are ceramics based on oxides and nitrides. Si₃N₄ ceramics, with their high melting point and superior mechanical properties, are considered promising candidates for hypersonic vehicle applications. However, the dielectric and thermal insulation properties of dense Si₃N₄ ceramics need improvement to meet the precise guidance and thermal protection demands of high-speed flight. By adjusting the microstructure, it is possible to enhance the dielectric, mechanical, and thermal properties of wave-permeable materials. As such, porous Si₃N₄ ceramics are pivotal in the development of radomes and antenna windows for hypersonic aircraft, which must endure extreme temperatures and stresses while maintaining low dielectric constants for effective radar functionality. Traditionally, balancing mechanical strength with wave-transmission efficiency has been a challenge, requiring innovative solutions to improve both aspects.



Recently, a team of material scientists led by Dr. Zhilin Tian and Bin Li from Sun Yat-sen University in China developed a porous Si₃N₄ ceramic with uniform, fine structures using a dual-solvent templating and freeze-casting method. This approach enables precise control over pore size and structure—key factors influencing the performance of high-temperature wave-transparent materials. Conventional methods like direct foaming, gel casting, and organic template impregnation often fail to achieve the necessary uniformity and regularity in pore structure. However, the new method can effortlessly transform anisotropic prismatic pores into isotropic spherical pores. This innovation leads to a synergistic enhancement of mechanical, thermal, and dielectric properties in porous Si₃N₄ ceramics.



The team published their work in the Journal of Advanced Ceramics on August 26, 2024.

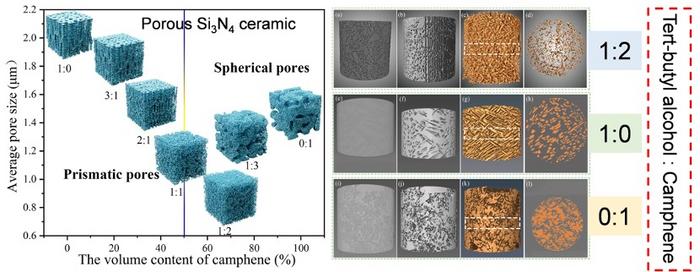

“In this study, we developed porous Si₃N₄ ceramics with uniform pore structures using a dual-solvent templating and freeze-casting method. The resulting ceramics have a porosity of 56% and exhibit impressive mechanical properties, with bending and compressive strengths of 95±14.8 MPa and 132±4.5 MPa, respectively,” explained Professor Zhilin Tian. “The dual-solvent system enriches the diversity of pore structures, which is closely tied to the solvent ratio. As the tert-butyl alcohol content decreases, the pore structure transitions from prismatic to spherical. Moreover, with increased camphene content, the pore diameter initially decreases before increasing again. When the solvent ratio is 1:2, the average pore diameter reaches its minimum, due to competition between the solvent crystals for growth space. More tert-butyl alcohol results in larger crystal and pore sizes, while reduced tert-butyl alcohol allows smaller camphene crystals to dominate, leading to smaller pores.”



“Our dual-solvent templating method offers unprecedented control over pore size and structure, which are critical for creating high-performance ceramics for aerospace applications,” said Professor Tian. “The combination of tert-butyl alcohol and camphene as templates allows us to achieve isotropic spherical pores, greatly enhancing both mechanical strength and thermal properties.” He further elaborated, “The competition between solvent crystals helps achieve optimal pore size, leading to improved crack deflection and energy absorption under high-speed flight conditions.”



This study lays the groundwork for further advancements in wave-transparent materials. According to Professor Tian, the next steps include scaling up the production process and fine-tuning the material’s properties to meet the specific demands of various aerospace applications. “Our ultimate goal is to develop a class of ceramics that can be utilized in a wide range of extreme environments.



This work was financially supported by the National Natural Science Foundation of China (Grant No. 52202078), the Leading Talent Project of the National Special Support Program (2022WRLJ003), Guangdong Basic and Applied Basic Research Foundation for Distinguished Young Scholars (Grant No. 2021B1515020083), and Guangdong Basic and Applied Basic Research Foundation (Grant Nos. 2021A1515110293 and 2022A1515012201).
