Improved electrotactile technology enables uniform tactile sensation across displays

Transparent Pressure-Calibratable Interference Electrotactile Actuator (TPIEA) offers consistent virtual haptic technology for VR and AR users

Peer-Reviewed Publication

Institute for Basic Science

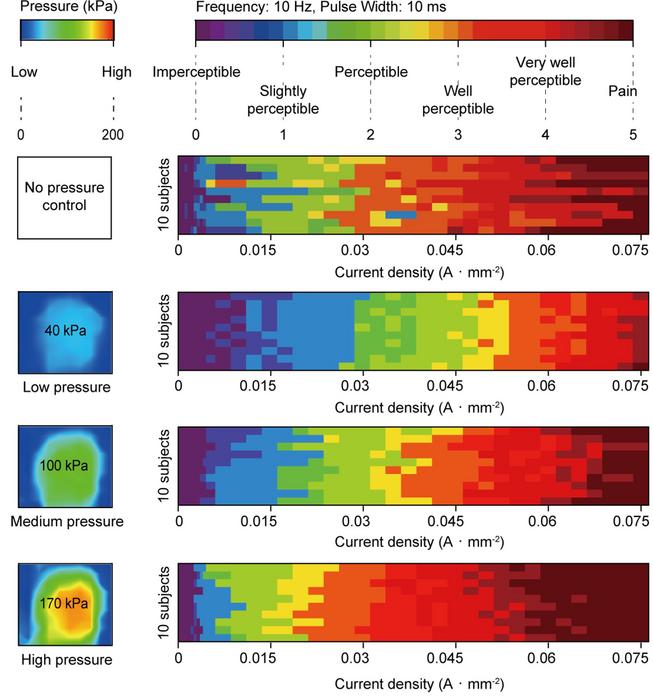

Figure 1. Consistent tactile sensation through pressure calibration

image:

The variations in electrical tactile intensity in relation to current density are examined under conditions of pressure compensation and in its absence. In the absence of pressure compensation, no discernible pattern emerges in the tactile sensations reported by users. Conversely, when pressure is uniformly compensated, the alterations in tactile sensations manifest consistently. It is evident that when the pressure exerted by the fingers is substantial, a heightened intensity of tactile sensation is perceived even at lower current levels.

view more

Credit: Institute for Basic Science

A virtual haptic implementation technology that allows all users to experience the same tactile sensation has been developed. A research team led by Professor PARK Jang-Ung from the Center for Nanomedicine within the Institute for Basic Science (IBS) and Professor JUNG Hyun Ho from Severance Hospital's Department of Neurosurgery has developed a technology that provides consistent tactile sensations on displays.

Virtual haptic implementation technology, also known as tactile rendering technology, refers to the methods and systems that simulate the sense of touch in a virtual environment. This technology aims to create the sensation of physical contact with virtual objects, enabling users to "feel" textures, shapes, and forces as if they were interacting with real-world items, even though the objects are digital. The technology is seeing increasing uses in the realms of virtual reality (VR) and augmented reality (AR), where it is used alongside visual and auditory cues to bridge the gap between the virtual and physical worlds.

Notably, electrotactile systems, which generate tactile sensations through electrical stimulation rather than physical vibrations, are emerging as promising next-generation tactile rendering technologies. The sensation of touch is mediated by mechanoreceptors, which are tactile sensory cells located in the skin that transmit tactile information to the brain in the form of electrical signals. Electrotactile systems artificially generate these electrical signals, thereby simulating the sense of touch. Precise and varied tactile experiences can be created by adjusting current density and frequency.

Despite their potential, existing electrotactile technologies face challenges, particularly in safety and consistency. Variations in skin contact pressure can lead to unstable tactile sensations, and the use of high currents raises safety concerns. To address these issues, the IBS research team developed a Transparent Pressure-Calibratable Interference Electrotactile Actuator (TPIEA).

TPIEA comprises two main components: an electrode section responsible for generating electrotactile sensations and a pressure sensor section that adjusts for finger pressure. Researchers greatly reduced the impedance of the electrode by applying platinum nanoparticles to an indium tin oxide-based electrode. This not only decreased impedance compared to conventional electrodes but also achieved a high transmittance of approximately 90%. The integrated pressure sensor ensures that users experience consistent tactile feedback regardless of how they touch the display.

Moreover, the research team conducted a Somatosensory Evoked Potential (SEP) test to quantify tactile sensations. By examining the responses of the user's somatosensory system to variations in the current and frequency of electrotactile stimulation, they were able to quantitatively differentiate and standardize tactile sensations. The team successfully implemented over nine distinct types of electrotactile sensations, ranging from those resembling hair to those resembling glass, depending on the current density and frequency of the electrical stimulation. The team further demonstrated that the TPIEA could be integrated with smartphone displays to reliably produce complex tactile patterns.

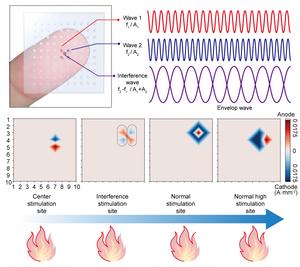

Additionally, the research introduced interference phenomena into the realm of electrotactile technology. The interference phenomenon pertains to the alterations in frequency and amplitude that occur when two electromagnetic fields overlap. This allowed the researchers to elicit the same intensity of electrotactile sensation with a current density that is 30% lower than previously required and to achieve an approximate 32% enhancement in tactile resolution. This research demonstrates the highest level of tactile resolution among current electrotactile technologies, including the Teslasuit.

Lead researcher PARK Jang-Ung remarked, "Through this electrotactile technology, we can effectively integrate visual information from displays with tactile information," and further expressed, "We anticipate that the findings of this research will significantly enhance the interaction between users and devices across various AR, VR, and smart device applications based on interference stimulation."

This research has been conducted in collaboration with colleagues from Yonsei University Severance Hospital. It was published in Nature Communications on August 21, 2024.
