Investigation on the novel high-performance copper/graphene composite conductor for high power density motor

In situ preparation of Cu/Gr composites

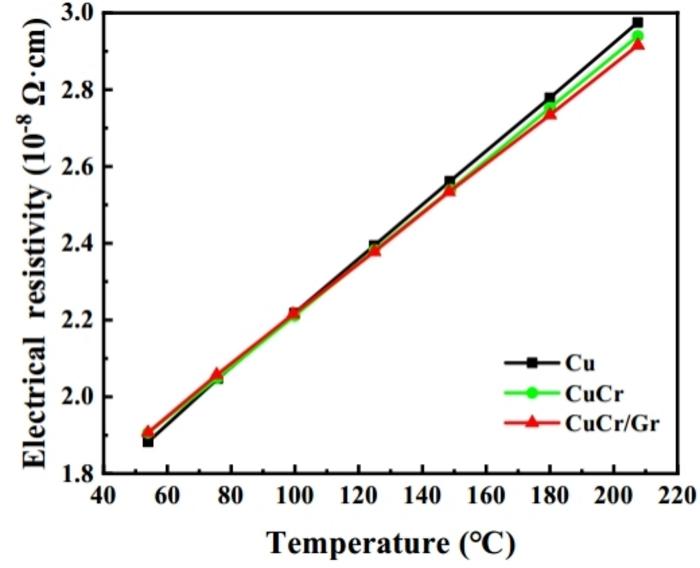

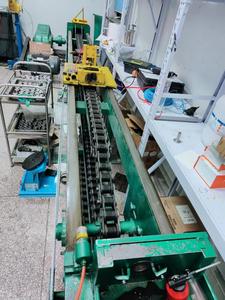

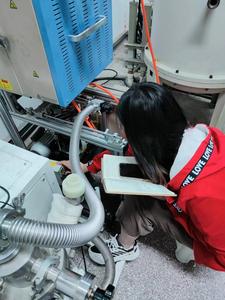

The study, led by Tingting Zuo, was based on the idea of in-situ growth, and a series of Cu/Gr composites with improved interfaces were prepared by vacuum hot press sintering. Combined with cold-drawing and heat-treatment processes, composite wires with extremely high strength and electrical conductivity at both room and elevated temperatures were obtained. The temperature coefficient of resistance (TCR) of the wires was drastically reduced to 0.0035/°C, which makes the wires exhibit low resistivity at higher temperatures.

Addressing the Challenges of Realizing Energy Efficient Electric Vehicle Motors

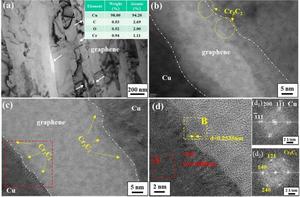

Due to inherent characteristics, the conductivity of copper has only increased by 3% over the past 100 years, and copper wires are difficult to maintain high strength at high temperatures, and the conductivity has decreased significantly. Therefore, developing new high-performance copper wires is an important way to improve the performance of electric motors and achieve high energy efficiency in electric vehicles. Tingting Zuo shared, “The in-situ growth method can avoid the agglomeration of carbon nanomaterials, and the formation of rare-earth oxides or carbides at the interface can effectively improve the interfacial bonding. Effective combination of the above methods and feasible plastic processing can result in high-quality copper/graphene composite wires.

From Cu/Graphene high temperature composites to high power density motors

The research object of this study shows good application advantages at temperatures higher than 100 °C. It opens a new way for the preparation of Cu/graphene high temperature composites. It provides a suitable method for the mass production of high-performance Cu/graphene composite conductors for high power density motor winding wires.

Looking to the future: Development of composite wires with extremely high strength and conductivity at both room and high temperatures

Looking ahead, the research team from Shanghai University of Electric Power and the Institute of Electrical Engineering of the Chinese Academy of Sciences plans to further improve the copper-carbon bonding interface, allowing the carbon nanomaterials to fully utilize their current transfer and reinforcement effects on the substrate, in order to achieve composite wires with extremely high strength and conductivity at both room and high temperatures. “Our next goal is to optimize our process parameters and rationalize the design of our experiments while addressing the aggregation and interfacial bonding of graphene in copper,” Zuo explained.

This in-situ growth technique helps to realize the use of copper/graphene wires in motor windings. As researchers continue to refine this technology, we can develop high-strength, high-conductivity, and high-temperature composites that will enable the mass production of high-power-density motors.
