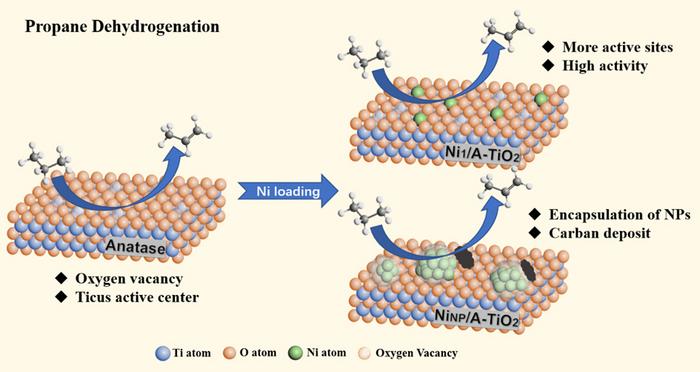

image: NI SINGLE-ATOM CATALTSTS WITH EXTREMELY LOW NI LOADING EXHIBIT VERY HIGH INTRINSIC ACTIVITY IN TERMS OF PROPANE CONVERSION AND DECENT STABILITY IN PROPANE DEHYDROGENATION REACTION. THE SINGLE NI ATOMS MAINLY PLAY AS ACTIVE CENTER RATHER THAN PROMOTING THE FORMATION OF OXYGEN VACANCIES OR COORDINARED UNSATURATED TI ION SITES OF TIO2 SUPPORT.
Credit: Chinese Journal of Catalysis
Propylene is one of the most important petrochemical raw materials, ranging the second after ethylene. To meet the ever-increasing demand, alternative technologies for propylene production are in urgent need, among which the propane dehydrogenation (PDH) has been considered as the most promising one. As a cheap and environmentally friendly candidate, Ni-based catalysts has attracted wide interest of researchers in various catalytic applications, such as hydrogenation, reforming of methane, electrochemical and photocatalytic etc. However, there has been little study of Ni in the alkane dehydrogenation under high temperature, likely because Ni species are easily reduced to metal Ni nanoparticles (NPs) during the harsh reaction, which may result in deep dehydrogenation and poor selectivity.
As a new frontier in the field of catalysis, single-atom catalyst (SAC) has been widely used in various catalytic reactions, but the application in dehydrogenation of light hydrocarbons at high temperature has been limited. In propane dehydrogenation, C-H bond activation is insensitive to the catalyst structure but undesired side reactions such as hydrolysis, isomerization and coking are typical structure-sensitive reactions that require the participation of multiple metal atoms. Therefore, SACs with isolated dispersed metal active centers have obvious advantages in suppressing these side reactions and become potential candidates for catalytic dehydrogenation of alkanes.
Recently, a research team led by Prof. Botao Qiao from Dalian Institute of Chemical Physics, Chinese Academy of Sciences, demonstrated that anatase TiO2 supported Ni single-atom catalyst (Ni1/A-TiO2) exhibited not only superior intrinsic activity and propylene selectivity but also much better stability than the corresponding Ni nanoparticle (NP) catalyst (NiNP/A-TiO2) in PDH reaction at 580 °C. The rate of propylene production on Ni1/A-TiO2 was about 1.96 molC3H6·gNi-1·h-1, above 65 times than that of NiNP/A-TiO2 sample (0.03 molC3H6·gNi-1·h-1). In combination of HAADT-STEM, in-situ CO-DRIFTS, in-situ XPS and XAS characterizations, they confirmed that the Ni SAC mainly contains individual Ni atom singly dispersed on the support in positive Ni (II) valence state, with mainly played as active center rather than promoted the formation of coordinated unsaturated Ti ion sites. In addition, as a result of strong metal-support interaction between Ni NPs and TiO2 carrier during reduced conditions, the Ni nanoparticles sites were encapsulated by TiOx overlayer (~2 nm thick) thus displayed lower initial propane conversion and lower durability. This work highlights the advantage of single-atom catalyst with isolated active site in PDH reaction, and provides reference for future research on the preparation and application of SACs. The results were published in Chinese Journal of Catalysis (DOI: 10.1016/S1872-2067(23)64584-X).
###
This work was supported by the National Key Research and Development program of China (2021YFA1500503), National Natural Science Foundation of China (21961142006, 21972135), and CAS Project for Young Scientists in Basic Research (YSBR-022). We acknowledge the Fundamental Research Center of Single-Atom Catalysis supported by the National Natural Science Foundation of China (22388102).
About the Journal
Chinese Journal of Catalysis is co-sponsored by Dalian Institute of Chemical Physics, Chinese Academy of Sciences and Chinese Chemical Society, and it is currently published by Elsevier group. This monthly journal publishes in English timely contributions of original and rigorously reviewed manuscripts covering all areas of catalysis. The journal publishes Reviews, Accounts, Communications, Articles, Highlights, Perspectives, and Viewpoints of highly scientific values that help understanding and defining of new concepts in both fundamental issues and practical applications of catalysis. Chinese Journal of Catalysis ranks among the top one journals in Applied Chemistry with a current SCI impact factor of 16.5. The Editors-in-Chief are Profs. Can Li and Tao Zhang.
At Elsevier http://www.journals.elsevier.com/chinese-journal-of-catalysis
Manuscript submission https://mc03.manuscriptcentral.com/cjcatal
Journal
Chinese Journal of Catalysis
Article Title
Catalytic propane dehydrogenation by anatase supported Ni single-atom catalysts
Article Publication Date
12-Feb-2024
