Highest power efficiency achieved in flexible solar cells using new fabrication technique

Flexible solar cells have many potential applications in aerospace and flexible electronics, but low energy conversion efficiency has limited their practical use. A new manufacturing method has increased the power efficiency of flexible solar cells made from perovskite, a class of compounds with a specific crystalline structure that facilitates the conversion of solar energy into electricity.



Current flexible perovskite solar cells (FPSCs) suffer from lower power conversion efficiency than rigid perovskite solar cells because of the soft and inhomogeneous characteristics of the flexible base material, made of polyethylene terephthalate (PET), the perovskite films of FPSCs are built upon. FPSCs also have lower durability than rigid solar cells that use glass as a base substrate. Pores in flexible solar cell substrates allow water and oxygen to invade the perovskite materials, causing them to degrade.



To address these issues with current FPSC technology, a team of material scientists from the State Key Laboratory of Power System Operation and Control at Tsinghua University and the Center for Excellence in Nanoscience at the National Center for Nanoscience and Technology in Beijing, China developed a new fabrication technique that increases the efficiency of FPSCs, paving the way for use of the technology on a much larger scale.



The team published their study on March 22 in iEnergy, published by Tsinghua University Press.



“Increasing the power conversion efficiency of FPSCs is crucial for several reasons: higher efficiency… makes FPSCs more competitive with other solar cell technologies, decreases the cost per watt of generated electricity… and resources needed to produce the same amount of electrical power and increases the range of applications where FPSCs can be practically used, including aerospace and flexible electronics where space and weight are at a premium,” said Chenyi Yi, associate professor in the State Key Laboratory of Power System Operation and Control at Tsinghua University and senior author of the paper.

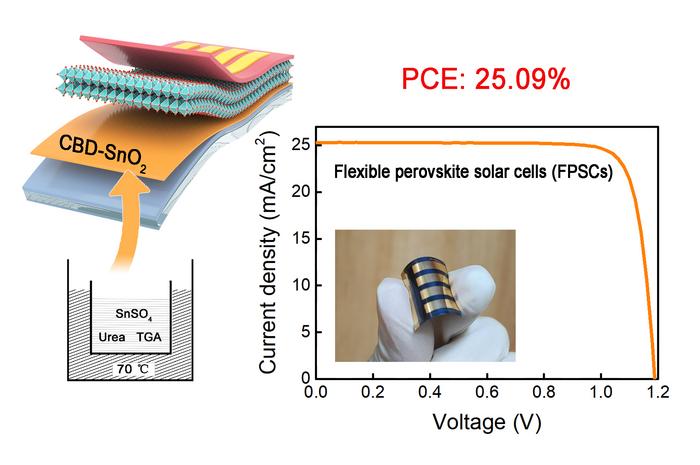

Specifically, the team developed a new chemical bath deposition (CBD) method of depositing tin oxide (SnO₂) on a flexible substrate without requiring a strong acid, which many flexible substrates are sensitive to. The new technique allowed the researchers more control over tin oxide growth on the flexible substrate. Tin oxide serves as an electron transport layer in the FPSC, which is critical for power conversion efficiency.



“This CBD method differs from previous research by using SnSO₄ tin sulfate rather than SnCl₂ tin chloride as a tin precursor for depositing SnO₂, making the new method… compatible with acid-sensitive flexible substrates,” said Yi.



Importantly, the new fabrication method also addresses some of the durability concerns over FPSCs. “The residual SO₄^2- sulfate left over after the SnSO₄-based CBD additionally benefits the stability of the PSCs because of the strong coordination between Pb²⁺ lead from perovskite and SO₄^2- from SnO₂. As a result, we can fabricate higher quality SnO₂ to achieve more efficient and stable FPSCs,” said Yi.



The team achieved a new benchmark for highest power conversion efficiency for FPSCs at 25.09% and was certified at 24.90%. The durability of the SnSO₄-based flexible solar cells was also demonstrated by cells maintaining 90% of their power conversion efficiency after the cells were bent 10,000 times. SnSO₄-based flexible solar cells also showed improved high-temperature stability compared to SnCl₂-based flexible solar cells.



The new fabrication method developed by the research team produced reproducible results and allows manufacturers to reuse the chemical bath, increasing the practicality of scalable FPSC production. “The ultimate goal is to transition these high-efficiency FPSCs from laboratory scale to industrial production, enabling widespread commercial application of this technology in various fields, from wearable technology, portable electronics and aerospace power sources to large-scale renewable energy solutions,” said Yi.



Other contributors include Ningyu Ren, Liguo Tan, Minghao Li, Junjie Zhou, Yiran Ye and Boxin Jiao from the State Key Laboratory of Power System Operation and Control in the Department of Electrical Engineering at Tsinghua University in Beijing, China; and Liming Ding from the Center for Excellence in Nanoscience (CAS) in the Key Laboratory of Nanosystem and Hierarchical Fabrication (CAS) at the National Center for Nanoscience and Technology in Beijing, China.



This research was supported by the National Key Research and Development Program of China (2022YFB3803304); National Natural Science Foundation of China (U23B20153, U23A20138); Tsinghua University Initiative Scientific Research Program (20221080065, 20223080044); Independent Innovative Research Program (ZK20230101); Department of Electrical Engineering, Tsinghua University, State Key Laboratory of Power System and Generation Equipment (nos. SKLD21Z03 and SKLD20M03); China Postdoctoral Science Foundation (2023M741888); Chinese Thousand Talents Program for Young Professionals; State Grid Corporation of China, National Bio Energy Co. Ltd., grant no. 52789922000D.



---
