B4C@TiB2 core–shell structural units show outstanding toughening effect for Al2O3 ceramics

Toughening has always been an important research direction of structure ceramics. The addition of secondary phases to the ceramic matrix to prepare composite ceramics is an effective toughening pathway in the field of structure ceramics. Both phase-type and microstructure of the secondary phases play a decisive role in the toughening effect of the ceramic matrix. Being different from the conventional independent phase as the secondary phase, B₄C@TiB₂ core–shell structural unit has been purposely designed as an innovative kind of secondary phase to toughen the Al₂O₃ ceramic matrix, providing a new concept for the toughening studies of structural ceramics.



A team of material scientists led by Zhixiao Zhang from Hebei University of Engineering in Handan, China recently prepared successfully a kind of Al₂O₃ composite ceramics toughened by B₄C@TiB₂ core–shell structural units consisting of the B₄C core enclosed by the TiB₂ shell. The core–shell structural units serving as the composite toughening phase of Al₂O₃ ceramics can break through the current toughening bottleneck of Al₂O₃ composite ceramics toughened using independent phases, and realize the further improvement for the fracture toughness of Al₂O₃ ceramics.



The team published their work in Journal of Advanced Ceramics on January 2, 2024.



“In this work, we prepared Al₂O₃ composite ceramics toughened by B₄C@TiB₂ core–shell structural units through a combination of molten salt methodology and spark plasma sintering. Unlike conventional setups where TiB₂ and SiC remain isolated and independently dispersed in Al₂O₃ ceramic matrix, the two secondary phases in this Al₂O₃ composites constitute core–shell composite structures which can induce multi-dimensional synergistic toughening behavior. The toughening effect produced by core-shell structural units is impossible to achieve by independent phases.” said Dr. Zhixiao Zhang, the corresponding author of the paper, a professor in the College of Materials Science and Engineering at Hebei University of Engineering. Professor Zhang is also the Top Talent in Hebei Province of China and vice Dean of the College of Materials Science and Engineering at Hebei University of Engineering.

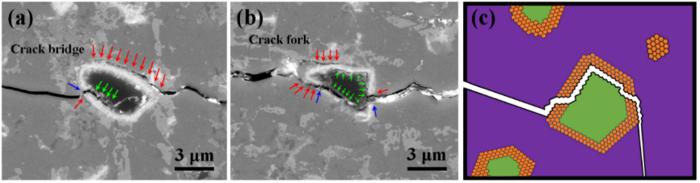

The B₄C@TiB₂ core–shell toughening units consist of a micron-sized B₄C core enclosed by a shell approximately 500 nm thick, composed of numerous nanosized TiB₂ grains. The regions surrounding these core–shell units exhibit distinct geometric structures and encompass multidimensional variations in the phase composition, grain dimensions, and thermal expansion coefficients. Consequently, intricate stress distributions emerge, thereby fostering the propagation of cracks in multiple dimensions. This behavior consumes a considerable amount of crack propagation energy, thereby enhancing the fracture toughness of the Al₂O₃ ceramic matrix. The resulting Al₂O₃ composite ceramics yield an improved fracture toughness up to 6.92 MPa·m^1/2.



“This novel concept and the corresponding toughening mechanism of utilizing core–shell structural unit as a secondary phase to enhance ceramic matrix toughness can provide a new perspective and theoretical foundation for the toughening research of other structural ceramics.” Zhixiao Zhang said.



The next step is to expand the shape and phase composition of core–shell structural units, including core–shell structural particles, whiskers, fibers, tubes, or plates, which consist of various phase types. Also, these core–shell structural units can be further extended to toughen a variety of structure ceramics, such as B₄C, TiB₂, SiC, etc. Meanwhile, a systematical study on the toughening mechanism of core-shell structural units as composite toughening phases will be performed. The ultimate goal is to develop a new toughening theoretical system based on core–shell units toughening ceramic matrix.



Other contributors include Yingjie Shi, Weixing Li, Xiaorong Zhang, Jiachao Jin, Jingbo Mu, Guangsuo Wang, and Xiaoliang Zhang from Hebei University of Engineering, Handan, China; Jilin Wang from Guilin University of Technology, Guilin, China; Yu Dong from Curtin University, Perth, Australia.



This work was financially supported by the Natural Science Foundation of Hebei Province (Nos. E2021402004, F2020402010, and E2020402075), Central Government Guided Local Science and Technology Development Fund Project (No. 226Z1101G), Three Talent Project of Hebei Province (No. A202101019), and Postgraduate Innovation Ability Training Funding Project of Hebei Province (No. CXZZSS2023120).



---
