Scientists successfully simulate protein complex that initiates fertilization

Who hasn't seen it before: the view through the microscope in which a sperm penetrates an egg cell and fertilises it. This fundamental step in procreation happens dynamically and seemingly without problems. However, if you zoom in on the processes that take place during fertilisation at a molecular level, it becomes highly complex and it is thus not surprising that 15 percent of couples worldwide struggle to conceive. No microscope, however modern, can illuminate the countless interactions between the proteins involved. Therefore, the exact trigger for the fertilisation process and the molecular events that transpire just before the fusion of the sperm and egg have remained murky — until now.

With the help of simulations on "Piz Daint", the supercomputer of the Swiss National Supercomputing Centre (CSCS), a research team led by ETH Zurich Professor, Viola Vogel has now made the dynamics of these crucial processes in the fertilisation of a human egg cell visible for the first time. According to their study, which was recently published in the journal Scientific Reports, the researchers’ simulations have succeeded in revealing important secrets.

Special protein complex enables the fusion process

It was previously known that the first specific physical connection between the two germ cells is an interaction of two proteins: the JUNO, which is located on the outer membrane of the female egg cell, and the IZUMO1 on the surface of the male sperm cell. "It was assumed that the combination of the two proteins into a complex initiates the recognition and adhesion process between the germ cells, thereby enabling their fusion," says Paulina Pacak, a postdoctoral researcher in Vogel's group and first author of the study. However, based on the crystal structure scientists had not yet been able to clearly describe the mechanism.

The ETH research team finally succeeded in doing this in their latest simulations. In order to create a realistic environment in the in-​silico experiment, the researchers needed to simulate JUNO and IZUMO1 in an aqueous solution. In water, however, the protein moves, and the interactions with the water molecules change both the way the proteins bind to each other and, in some cases, the function of the proteins themselves. "This makes the simulations much more complex, also because water alone already has a highly complex structure," says Vogel, "but the simulations provide a more detailed picture of the dynamic of the interactions."

The simulations on "Piz Daint" spanned 200 nanoseconds each and showed that the JUNO-​IZUMO1 complex is stabilised by a network of over 30 short-​lived contacts — the individual bonds lasted less than 50 nanoseconds each. According to the researchers, a deeper understanding of these network dynamics of the rapidly changing formation and breaking of individual bonds presents new possibilities for the development of contraceptives, as well as for better understanding mutations that affect fertility.

Zinc ions regulate bond strength

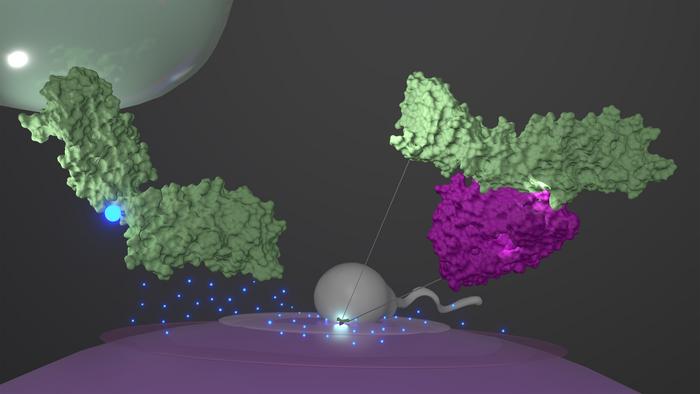

With these network dynamics brought to light, the researchers then investigated how these vital protein binding could be destabilised. Zinc ions (Zn²⁺) play an important role here: If they are present, IZUMO1 bends into a boomerang-​like structure as shown by the simulations and, as a result, IZUMO1 can no longer firmly bind to the JUNO protein. According to the researchers, this could be one reason why the egg cell releases many zinc ions immediately after fertilisation in a so-​called "zinc spark". This flood of zinc is known to prevent further sperm from penetrating the egg cell which would otherwise cause aberrant development.

"We can only find out something like this with the help of simulations. The findings that we derive from them would hardly be possible on the basis of the static crystal structures of the proteins," emphasises Vogel. "The highly dynamic process of fertilisation takes place far away from the equilibrium. As available protein structures show them embedded in the crystal, resources such as those at CSCS are essential to capture and understand these interaction dynamics."

Folic acid binding by IZUMO1

Thanks to the simulations, the researchers were able to unravel another mystery too: how naturally occurring folates and their synthetic equivalents, folic acids, bind to the JUNO protein. Expectant mothers are generally recommended to take folic acid supplements before a planned pregnancy and during the first three months to support healthy neural development in the fetus. However, laboratory experiments have shown that the JUNO protein does not bind with folate in aqueous solution, even though JUNO itself is a folate receptor. The molecular dynamics simulations have now shown that Folate binding is possible once IZUMO1 binds to JUNO. Only then can the folate enter the presumed folate-​binding pocket of JUNO.

These new discoveries are not only of fundamental interest for structural biology. They also provide a detailed basis for the development of active pharmaceutical ingredients. According to the researchers, the decoded dynamic mechanisms of the interaction between the JUNO and IZUMO1 proteins could point to new ways of treating infertility, developing drug-​based non-​hormonal contraceptive methods, and improving in vitro fertilisation technology.
