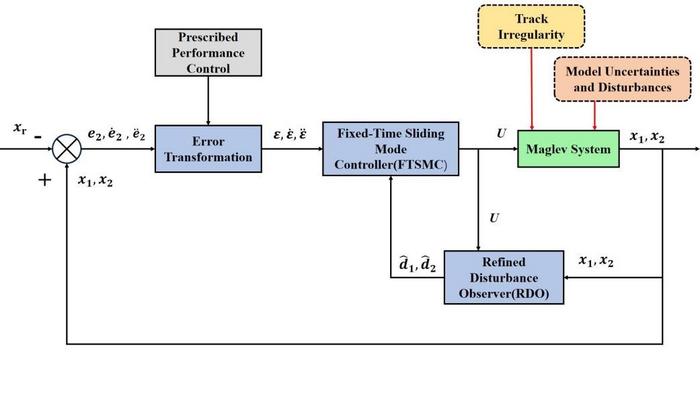

image: BLOCK DIAGRAM OF PROPOSED CONTROL STRATEGY
Credit: Yiran Xie, Boyang Zhao, Xiuming Yao
The maglev train represents a type of modern urban rail transit transportation tool, boasting many technical advantages such as low noise, green environmental protection, small turning radius, good stability and high comfort. These advantages benefit from the suspension mode of the train. The maglev train realizes the non-contact suspension and guidance between the train and the track through electromagnetic force. The linear motor generates electromagnetic force to propel the train, minimizing friction between the train and the track during operation and significantly enhancing overall operational efficiency.
Nonetheless, the maglev train is inevitably stimulated by track irregularities when tracking track operations. There are many reasons that can cause track irregularities, including stator surface offset and tilt, tilt of functional components, as well as line design and large-scale foundation settlement. Different reasons correspond to track irregularities of different wavelengths, which deteriorate the control performance of the suspension system.
In a study published in the KeAi journal High-speed Railway, a team of researchers from the School of Electronics and Information Engineering at Beijing Jiaotong University, proposed a composite control scheme for the high-speed electromagnetic suspension (EMS) train to suppress track irregularities.
“For track roughness interference in non input channels, it’s considered as harmonic interference and estimated using a disturbance observer,” explains corresponding author of the study, Xiuming Yao. “For the lumped interference in the input channel, an extended state observer was used for estimation. Due to the fact that the extended observer can estimate disturbances well without prior knowledge of interference information, using an extended state observer to observe disturbances has extremely high accuracy.”
The refined disturbance observer proves adept at accurately estimating track irregularities and lumped disturbances amid uncertainties and exogenous disturbances. Moreover, the fixed-time controller, based on prescribed performance, swiftly compensates for disturbances within a predetermined time frame.
A prescribed performance fixed-time controller (PPFTC) was also designed to address and suppress disturbance estimates. Initially, prescribed performance control was employed to restrict the suspended air gap error. Subsequently, the error underwent transformation from a constrained space to an unconstrained space through a transformation equation, ensuring the safety of the control law design..
"The simulation results on the suspension system demonstrate that the proposed control scheme enhances the suspension air gap response and bolsters the stability of train operation,” says Yao.
Looking ahead, the team suggests exploring the impact of high-speed compressed air flow between the vehicle body and track on the suspension system. Additionally, the researchers propose extending the control algorithm to the semi-bogies or full bogies of trains and validating it on testing lines in future research.
###
Contact the authors: Yiran Xie, Institute of Rail Traffic Control, School of Electronics and Information Engineering, Beijing Jiaotong University, China, 22125134@bjtu.edu.cn ; Boyang Zhao, Institute of Rail Traffic Control, School of Electronics and Information Engineering, Beijing Jiaotong University, China, 21111062@bjtu.edu.cn ; Xiuming Yao, Institute of Rail Traffic Control, School of Electronics and Information Engineering, Beijing Jiaotong University, China, xmyao@bjtu.edu.cn
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 100 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Journal
High-speed Railway
Method of Research
Computational simulation/modeling
Subject of Research
Not applicable
Article Title
Refined disturbance observer based prescribed performance fixed-time control of high-speed EMS trains with track irregularities.
COI Statement
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
