Figure 3.Correlation between Follicle Morphology and Transcriptome Analyzed with DRaqL (IMAGE)
Caption

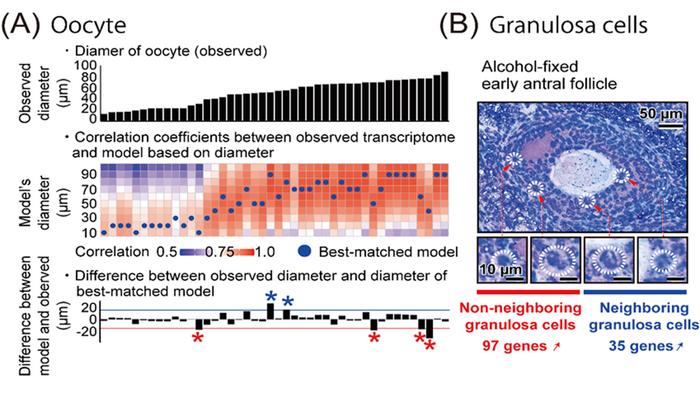

(A) Observed oocyte diameters (top), correlation coefficients between the transcriptome model constructed for oocyte diameters and the actual transcriptome of individual oocytes (middle), and the difference between the diameters of the model with the highest correlation coefficient to the real oocytes and their actual diameters (bottom). (B) Histological depiction of granulosa cells neighboring and non-neighboring to the oocyte, along with the number of upregulated genes.
