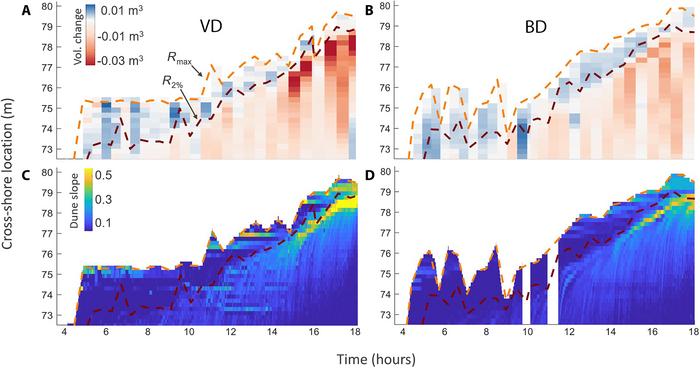

Fig. 2. Wave run-up extent, accretion and erosion patterns, and micro-slope formation on the dunes over time. (IMAGE)
Caption
(A) VD maximum run-up distance (Rmax), R2% run-up distance, and accretion-erosion patterns over the course of the storm. (B) BD Rmax distance, R2% distance, and accretion-erosion patterns. (C) VD micro-slopes over the course of the storm. (D) BD micro-slopes over the course of the storm. In (D), the white space around 10 and 11.5 hours on the y axis indicates data gaps. Axes for all graphics: The x axis ranges from the time that waves first encountered the vegetation (at 4 hours) until the peak of the storm conditions. The y axis ranges from the cross-shore location where the vegetation began at the dune toe (72.5 m) and extended landward to the dune peak (80 m).
Credit
Rusty A. Feagin et al. ,Does vegetation accelerate coastal dune erosion during extreme events?.Sci. Adv.9,eadg7135(2023).DOI:10.1126/sciadv.adg7135
