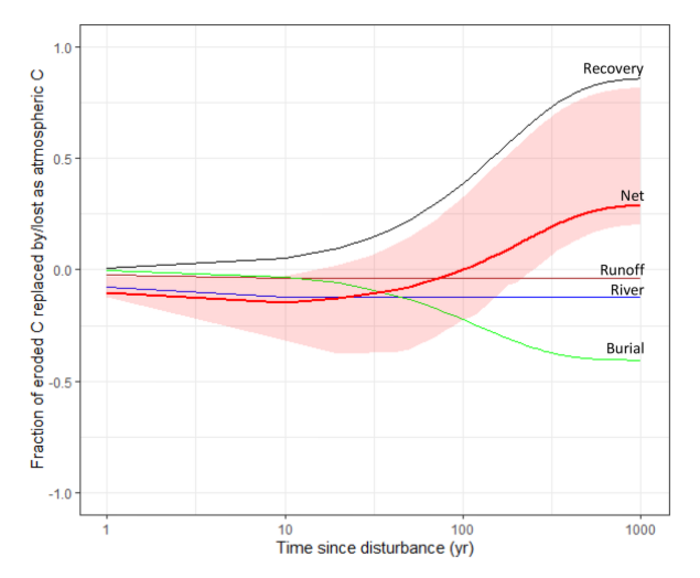

Framework to represent fraction gain and loss relative to mobilised soil OC for different components of the geomorphic cascade (IMAGE)
Caption
The example shown here (full lines) uses the best estimates of model parameters described in the text and given in Table 2 (i.e., αrunoff D 0.04, τrunoff D 1, αriver D 0.5, τriver D 1, αburial D 0.54, τburial D 0.008, αrecovery D 0.86, τrecovery D 0.006). The red shaded area represents the uncertainty associated with the model parameters for the net overall effect (see Methods).
Credit
Van Oost, K. and Six, J.: Reconciling the paradox of soil organic carbon erosion by water, Biogeosciences, 20, 635–646, https://doi.org/10.5194/bg-20-635-2023, 2023.
Usage Restrictions
N/A
License
Original content
