Bell state (IMAGE)
Caption

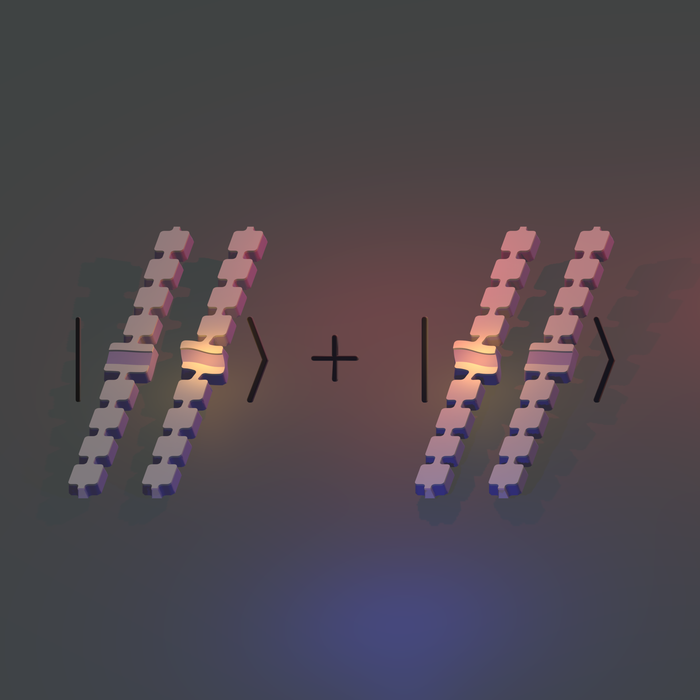

Conceptual illustration of a Bell state, in which one unit of vibrational energy is shared between two oscillators. The system exists in two possible states simultaneously: the first possible quantum state (in brackets, left of the plus sign) shows the right-hand oscillator vibrating and the left-hand oscillator standing still. The second possible state shows the vibrational energy occupying the left-hand oscillator, with the right-hand one still. The device exists in a superposition of both possible states – meaning that each oscillator is both moving and not moving at the same time – until it is measured. A measurement of the system would yield only one of the two depicted (bracketed) outcomes: If the left-hand oscillator was observed to be vibrating, the right-hand would necessarily be still, and vice versa. This illustrates the entanglement between the two oscillators: By performing a measurement to learn information about the motion of only one oscillator, an observer would also determine the state of the other oscillator, without needing to measure it separately.
