Experimental characterizations of OBH cavity. (IMAGE)
Caption

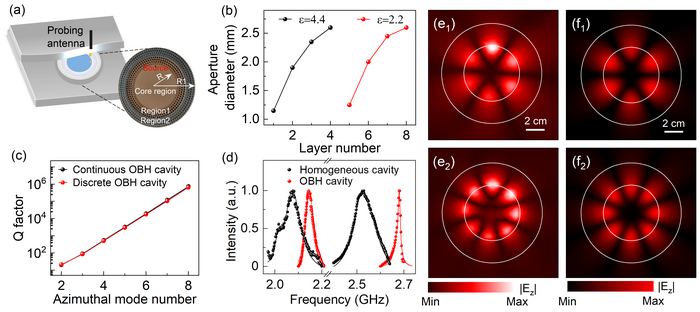

(a) Experimental setup of the microwave near-field scanning system. Inset: photograph of the fabricated sample. (b) Design aperture size distributions in OBH layered structures. (c) Comparison of simulated Q-factor in continuous and discrete OBH cavity with various azimuthal mode numbers. (d) Experimental normalized resonant spectra of OBH cavity and homogeneous cavity with mode number m=3 and m=4. The solid curves are Lorentz fittings. Measured WGM field pattern with mode number (e₁) m=3 and (e₂) m=4. Simulated WGM field pattern with mode number (f₁) m=3 and (f₂) m=4. The white curves are the core and cladding material boundary of OBH cavity device.
