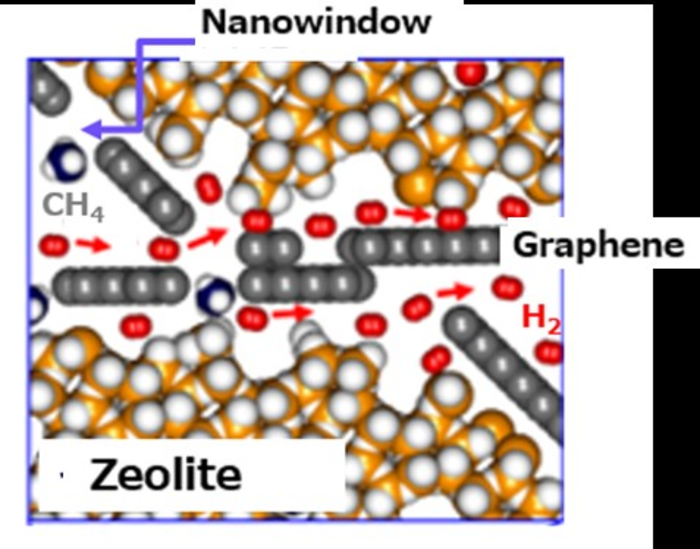

Figure 2 Permeation model of hydrogen molecules between zeolite crystals wrapped with graphene. (IMAGE)
Caption
The black circle connection is a one-layer graphene model, and the nano window is shown as blank. Red hydrogen permeates the gap between graphene and the surface of the zeolite crystal. On the other hand, large CH4 molecules are difficult to permeate.
