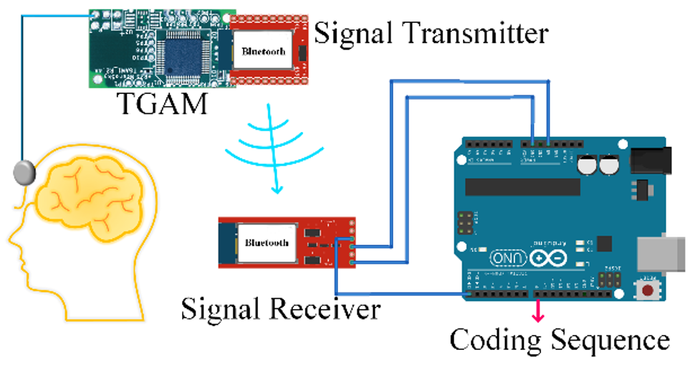

Schematic diagram of the process of brainwaves signal extraction and transmission. (IMAGE)
Caption
In the process of brainwave signal extraction and transmission, the TGAM module extracts brainwave signals and converts them to attention value. And the attention information is transmitted remotely from the Bluetooth module to the Arduino, which outputs different voltages by discriminating values.
