Figure 2: Temperature distribution in the slab (IMAGE)

Kobe University

Figure 2: Temperature distribution in the slab

Caption

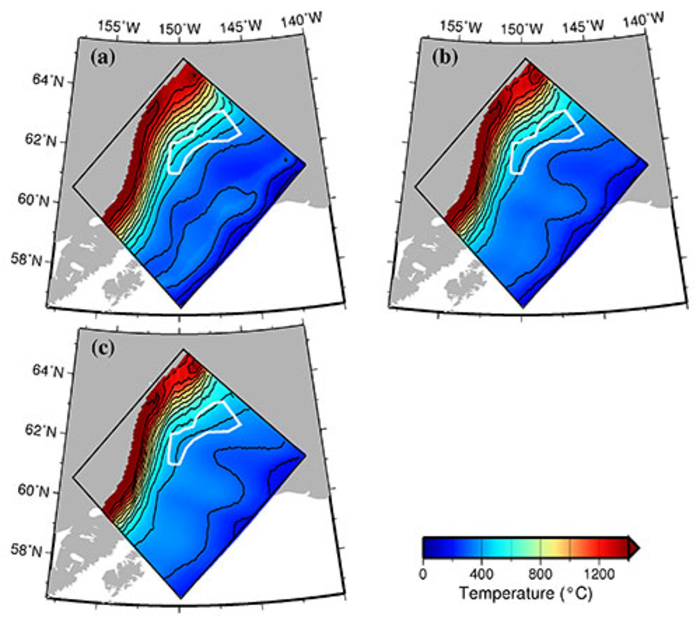

The temperature distribution is only plotted in the region where the depth of the slab surface is shallower than the bottom of the model (200 km), with a contour interval of 100°C. The white line indicates the area where low-frequency tectonic tremors occur, as shown in Figure 1. (a) The slab surface (0 km). (b) 6 km depth from the slab surface. (c) 10 km depth from the slab surface.

Credit

Iwamoto, K., Suenaga, N. & Yoshioka, S. Relationship between tectonic tremors and 3-D distributions of thermal structure and dehydration in the Alaska subduction zone. Sci Rep 12, 6234 (2022). https://doi.org/10.1038/s41598-022-10113-2

Usage Restrictions

Credit must be given to the creator.

License

CC BY
