Produced Water vs. Seismic activity chart (IMAGE)

University of Texas at Austin

Produced Water vs. Seismic activity chart

Caption

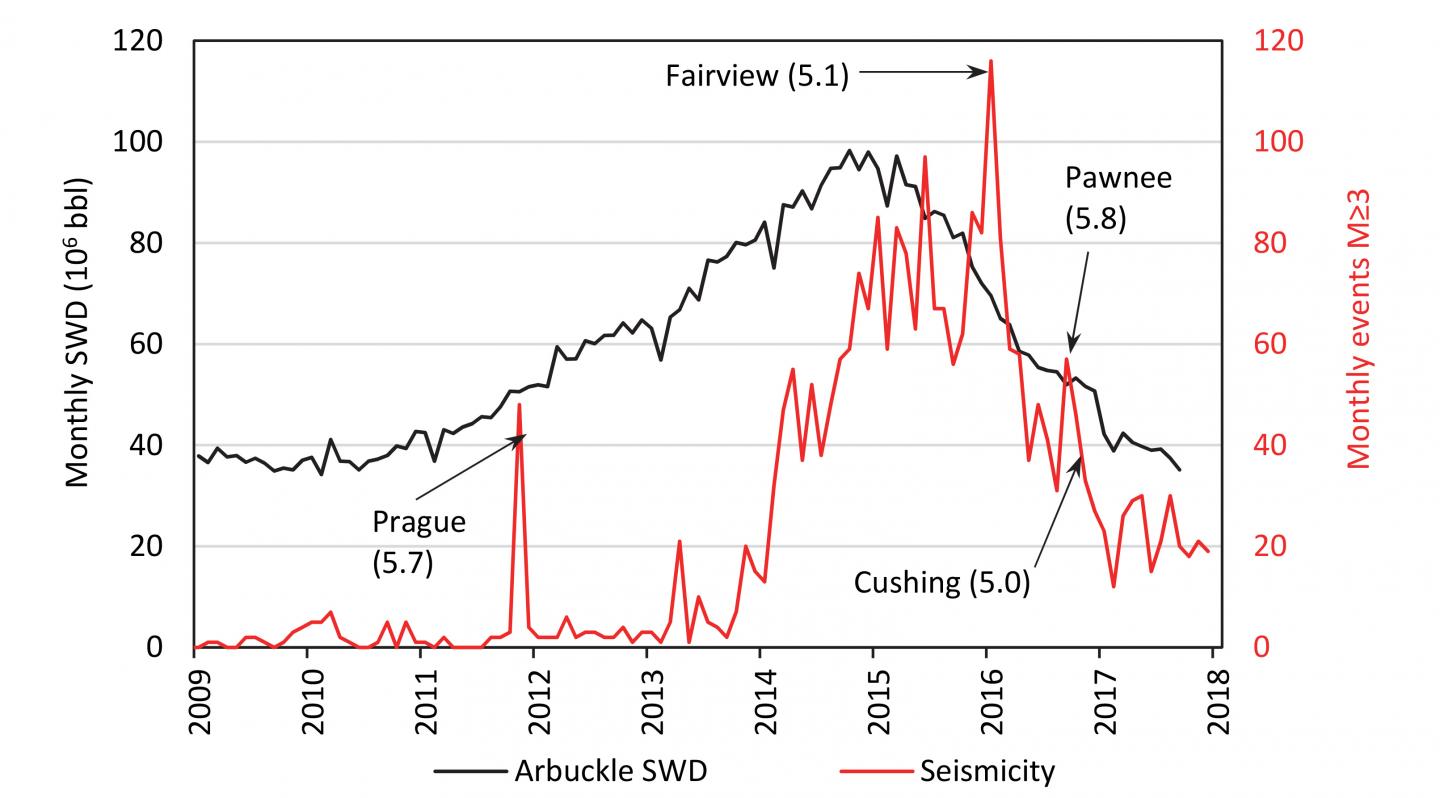

Comparison between monthly rates of produced water disposal (SWD) and the monthly number of seismic events with M ? 3.0 in the Oklahoma area of interest. The produced water disposal volumes are in black and the number of seismic events are in red. The labels on the chart indicate the location and magnitude of seismic events with M ? 5.0

Credit

Scanlon et al.
