Nanofabrication of Artificial Graphene in a Semiconductor 2 (IMAGE)

Columbia University School of Engineering and Applied Science

Nanofabrication of Artificial Graphene in a Semiconductor 2

Caption

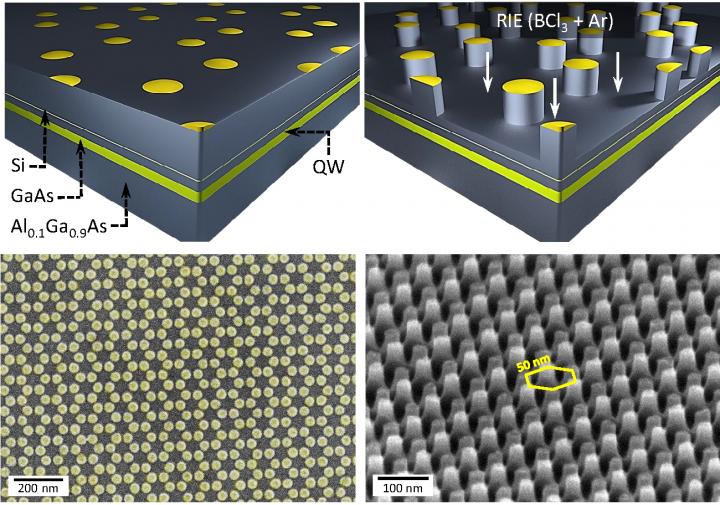

The green layer represents the 2-D sheet where the electrons can move. Nanolithography and etching form small pillars beneath which lie the quantum dots arranged in an hexagonal lattice. Scanning electron micrographs at the bottom show the hexagonal array, with a period of only 50 nanometers, from the top and at an angle.

Credit

Diego Scarabelli/Columbia Engineering

Usage Restrictions

Please use the credit line: Diego Scarabelli/Columbia Engineering
