Seismic Imaging of the Yellowstone Plume (IMAGE)
Caption

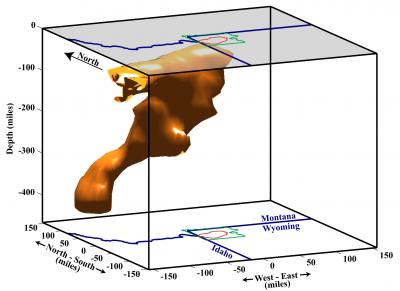

Seismic imaging was used by University of Utah scientists to construct this 3-D picture of the Yellowstone hotspot plume of hot and molten rock that feeds the shallower magma chamber (not shown) beneath Yellowstone National Park, outlined in green at the surface, or top of the illustration. The Yellowstone caldera, or giant volcanic crater, is outlined in red. State boundaries are shown in black. The park, caldera and state boundaries also are projected to the bottom of the picture to better illustrate the plume's tilt. Researchers believe "blobs" of hot rock float off the top of the plume, then rise to recharge the magma chamber located 3.7 miles to 10 miles beneath the surface at Yellowstone. The illustration also shows a region of warm rock extending southwest from near the top of the plume. It represents the eastern Snake River Plain, where the Yellowstone hotspot triggered numerous cataclysmic caldera eruptions before the plume started feeding Yellowstone 2.05 million years ago.
Credit
University of Utah
