Experimental Setup (IMAGE)

European Synchrotron Radiation Facility

Experimental Setup

Caption

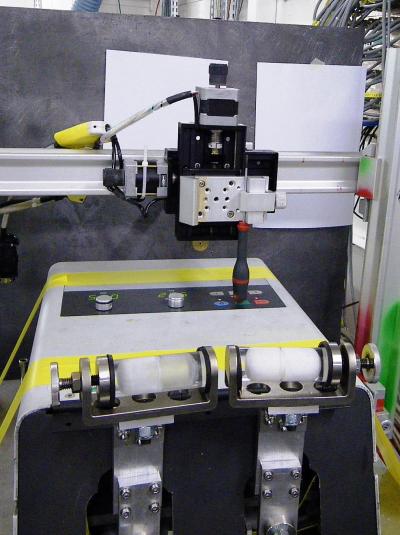

The experimental setup at the ESRF in Grenoble (France) with the milling jar containing the white ZIF-8 shown in the front, mounted on a modified industrial mill. The X-rays enter at the yellow circle, and the X-ray detector is set several meters behind the viewer. The robot with the screw driver to push the buttons was devised by Frank Adams, team member from MPI for Solid State Research in Stuttgart, is positioned above the mill and enables remote control. This is necessary because of the lethal level of X-rays during the experiment, which takes places inside a cabin shielded by several centimetres of lead.

Credit

Credit T. Friščić
