Figure 2. (IMAGE)

Science China Press

Figure 2.

Caption

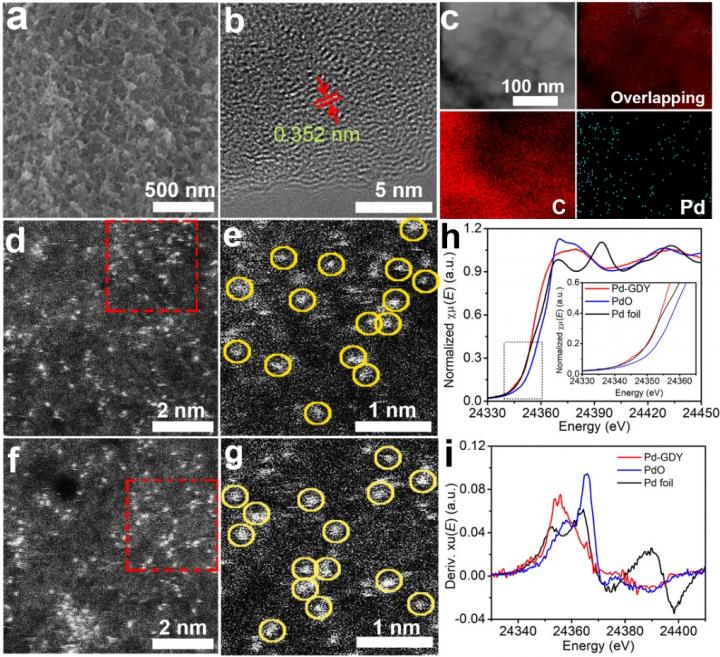

(a) SEM, (b) HRTEM, (c) elemental mapping, and (d,f) HADDF-STEM images of Pd-GDY. (e,g) Enlarged images of the red square areas in image (d) and (f), respectively. (h) The experimental K-edge XANES spectra (inset: magnified image) and (i) the first derivative curves of Pd-GDY, Pd foil and PdO.

Credit

©Science China Press

Usage Restrictions

Use with credit.
