Simplified Fault Map (IMAGE)
Caption

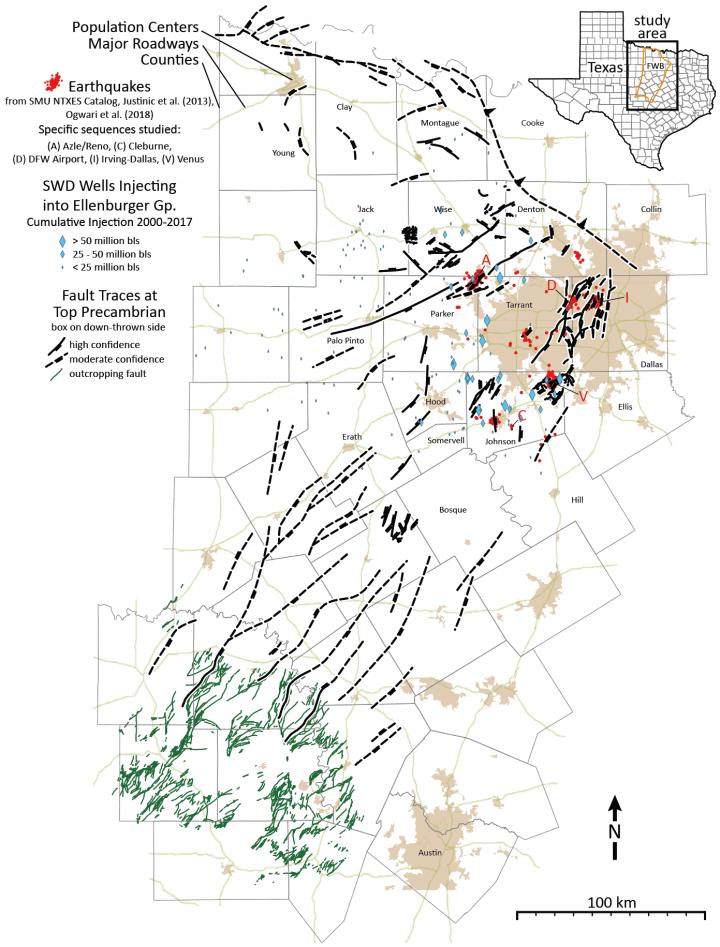

A simplified version of the fault map created by the team of researchers. The map includes faults that are visible at the surface (green) and faults that are underground (black). The solid line indicates underground faults that researchers were able to map at a high resolution. The dotted line indicates faults that were mapped at a medium resolution. According to the research, in the presence of wastewater injection activity, the majority of the faults in the area are as susceptible to slipping as those faults that have already produced earthquakes. The map also marks earthquake locations and waste-water injection well locations and amounts.
