S-O Bond Length (IMAGE)

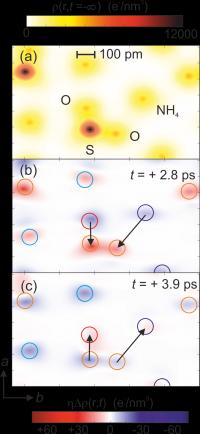

Caption

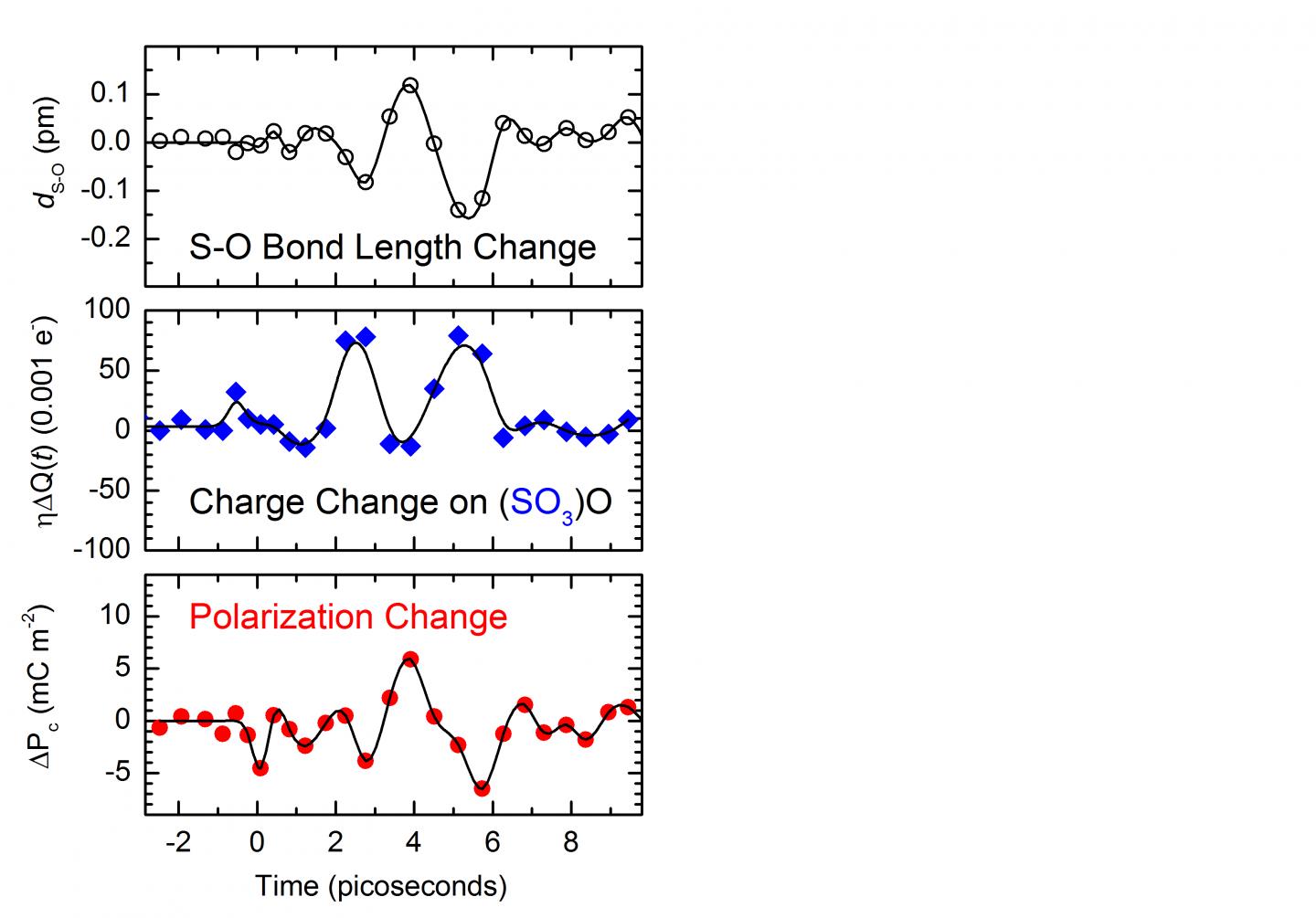

The upper panel shows a change of the S-O bond length as a function of the delay time. The maximum change of 0.1 pm is 1000 times smaller than the bond length itself, i.e., the atomic motions cannot be observed in Fig. 2. Middle panel: Charge transfer from one oxygen atom to the SO3 group of the sulfate ion (left black arrows in Fig. 2) as a function of delay time. Lower panel: Change of the macroscopic polarization P along the c axis which is the sum of all microscopic dipole changes of the local S-O dipoles within the sulfhate ions (red and blue arrows in Fig. 1 bottom right).
