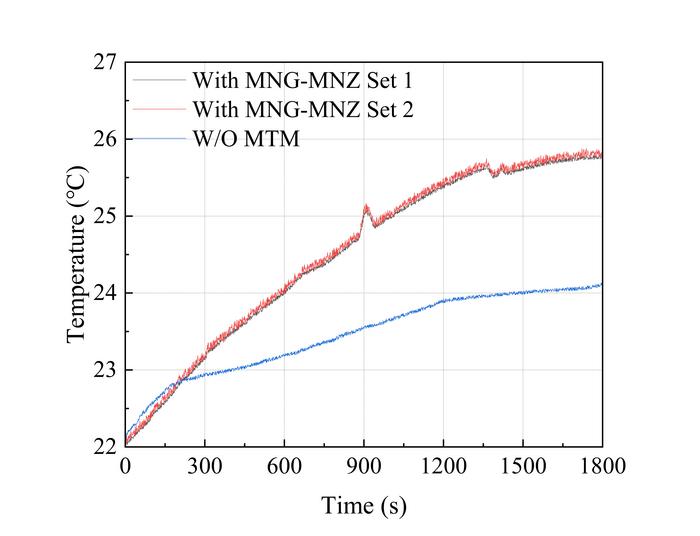

The temperature rise curve of MCR-WPT system after 30 min charging simulation experiment. (IMAGE)
Caption
To verify the temperature rise during operation of the MCR-WPT system based on MNG-MNZ metamaterial, we conducted 2 sets of temperature rise experiments on the MCR-WPT system with MNG-MNZ metamaterial and 1 set of experiment without metamaterial at room temperature of 22 ℃. Temperature data were collected by STM32 one-chip computer once per second. The temperature results of different sets of temperature rise experiments are as shown in Fig.
