Figure 2. Circuit structure of proposed transceiver (IMAGE)

Tokyo Institute of Technology

Figure 2. Circuit structure of proposed transceiver

Caption

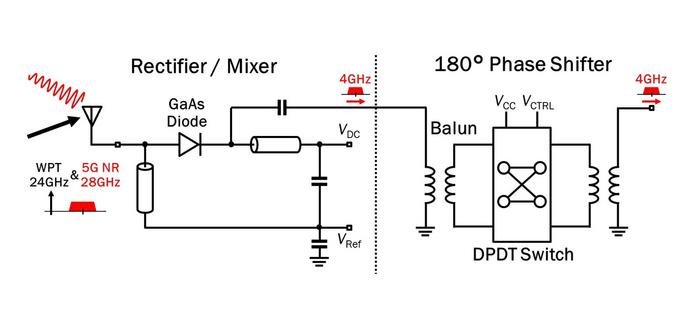

The board includes gallium arsenide diodes, balun ICs, DPDT switch ICs, and digital ICs. This circuit generates DC from 24GHz WPT signal and downconverts 28GHz RF signal to 4GHz IF signal simultaneously.
