FIG 3 (IMAGE)

Compuscript Ltd

FIG 3

Caption

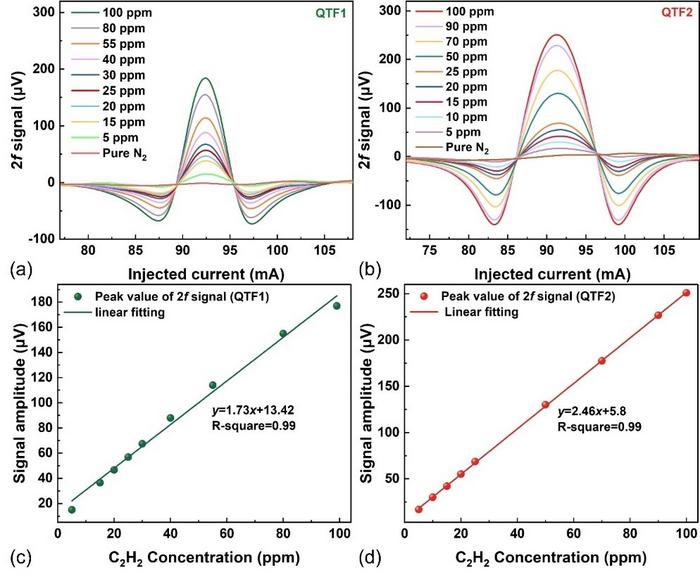

Concentration test results of the C2H2-LITES sensor. (a) 2f signal when using commercial QTF. (b) 2f signal when using trapezoidal-tipped QTF. (c) Concentration linear response when using commercial QTF. (d) Concentration linear response when using trapezoidal-tipped QTF.
